Backhoe-BHSM175

Backhoe-BHSM175

Price : SOLD

Print Friendly, PDF & Email

Backhoes Hanmey

Take the back breaking work out of owning property.
Why not do your own earthmoving instead of waiting for expensive contractors?
The Hanmey backhoe will soon pay for itself by simply hooking it up to your tractor.

Hanmey has been sold over many years in Australia and are in the top end of quality implements from China.

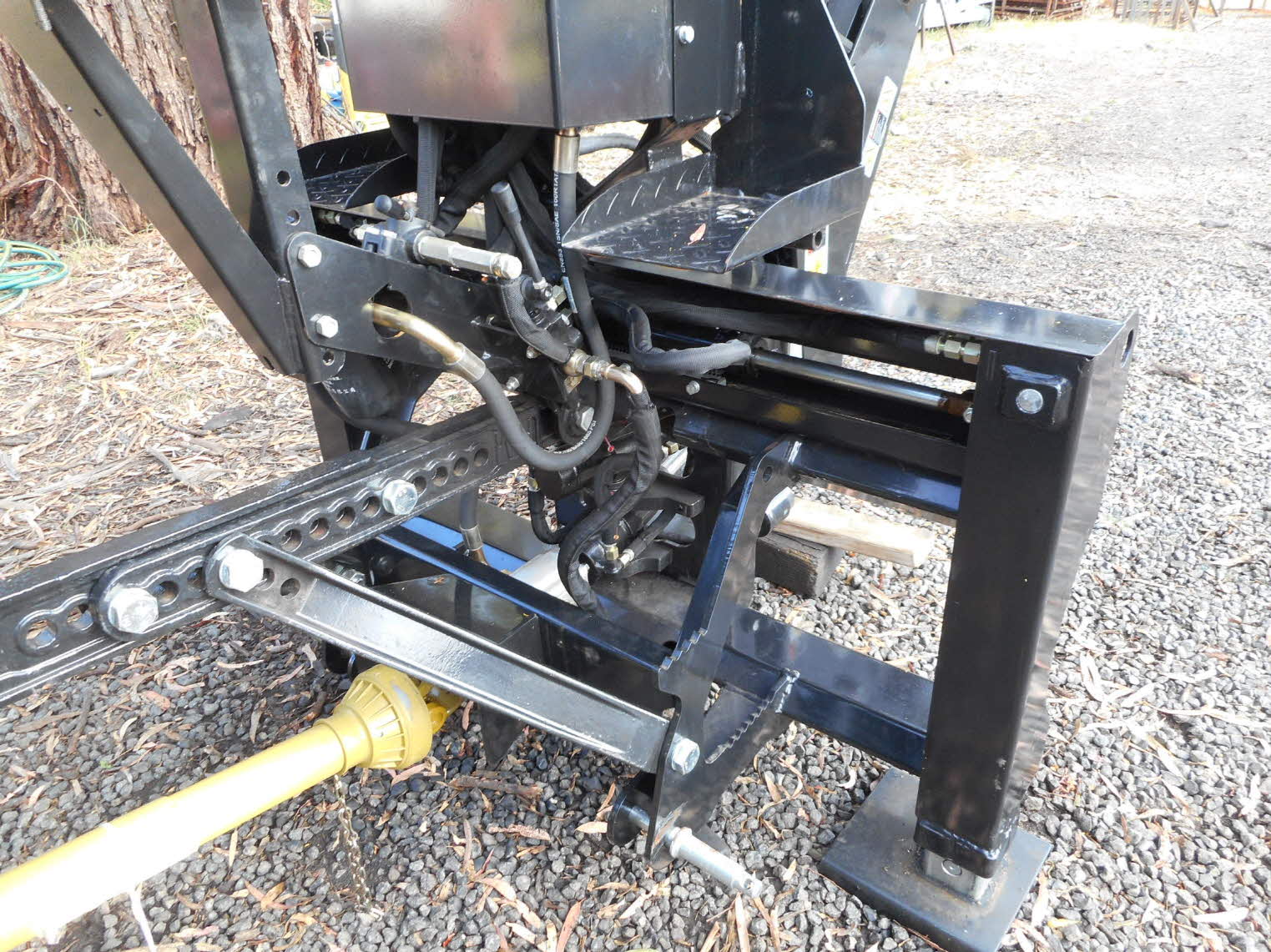

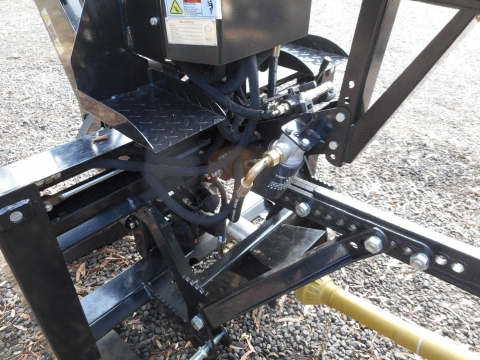

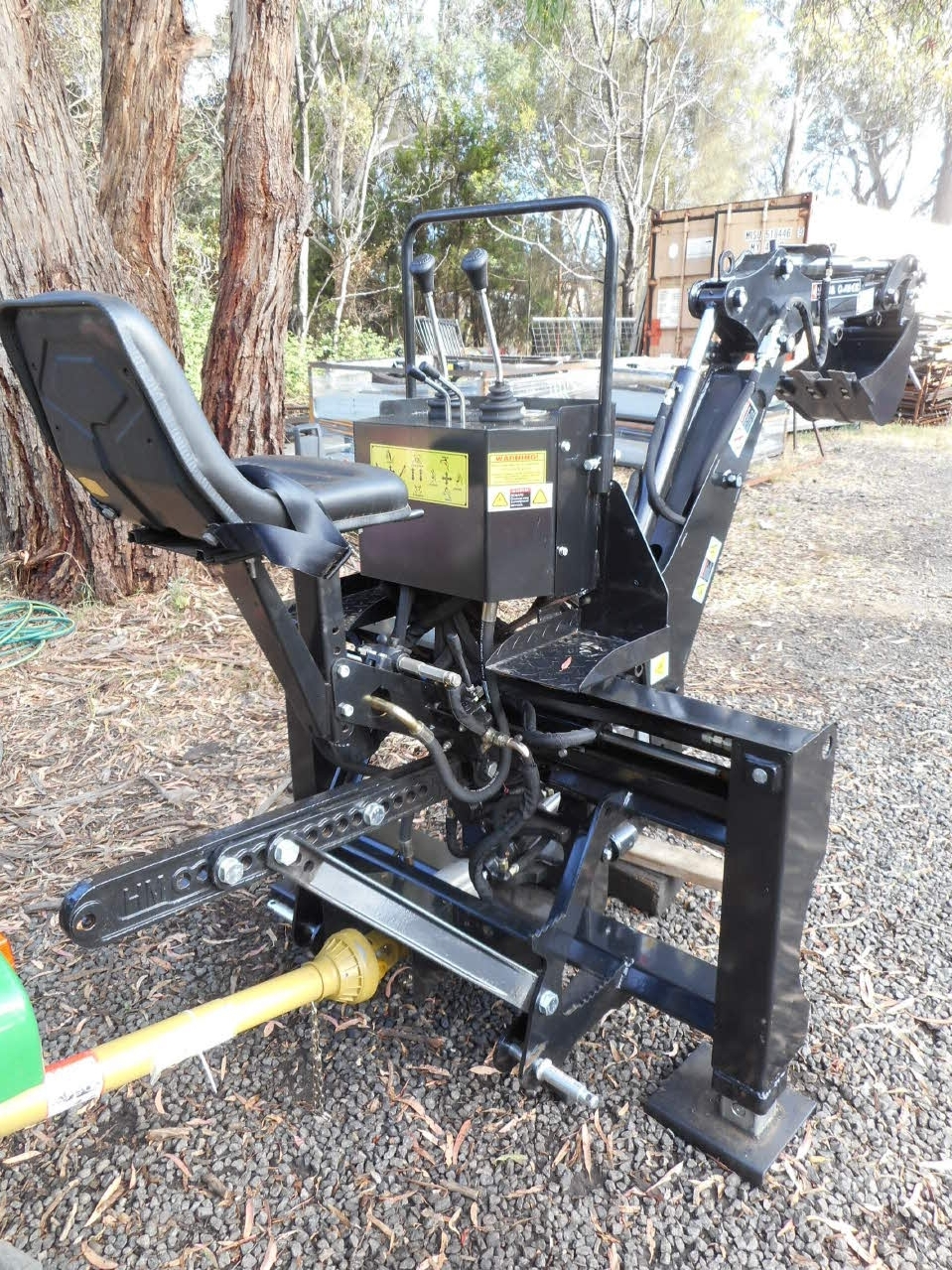

The backhoes are attached to the 3 point linkage on the tractor, powered by the PTO and run with independent hydraulic systems.
Quality components fitted all round, with precise feel functions.

With the two  series of models:
BHM are fixed boom models where the boom is fixed in the centre but you still have 180 degree slew

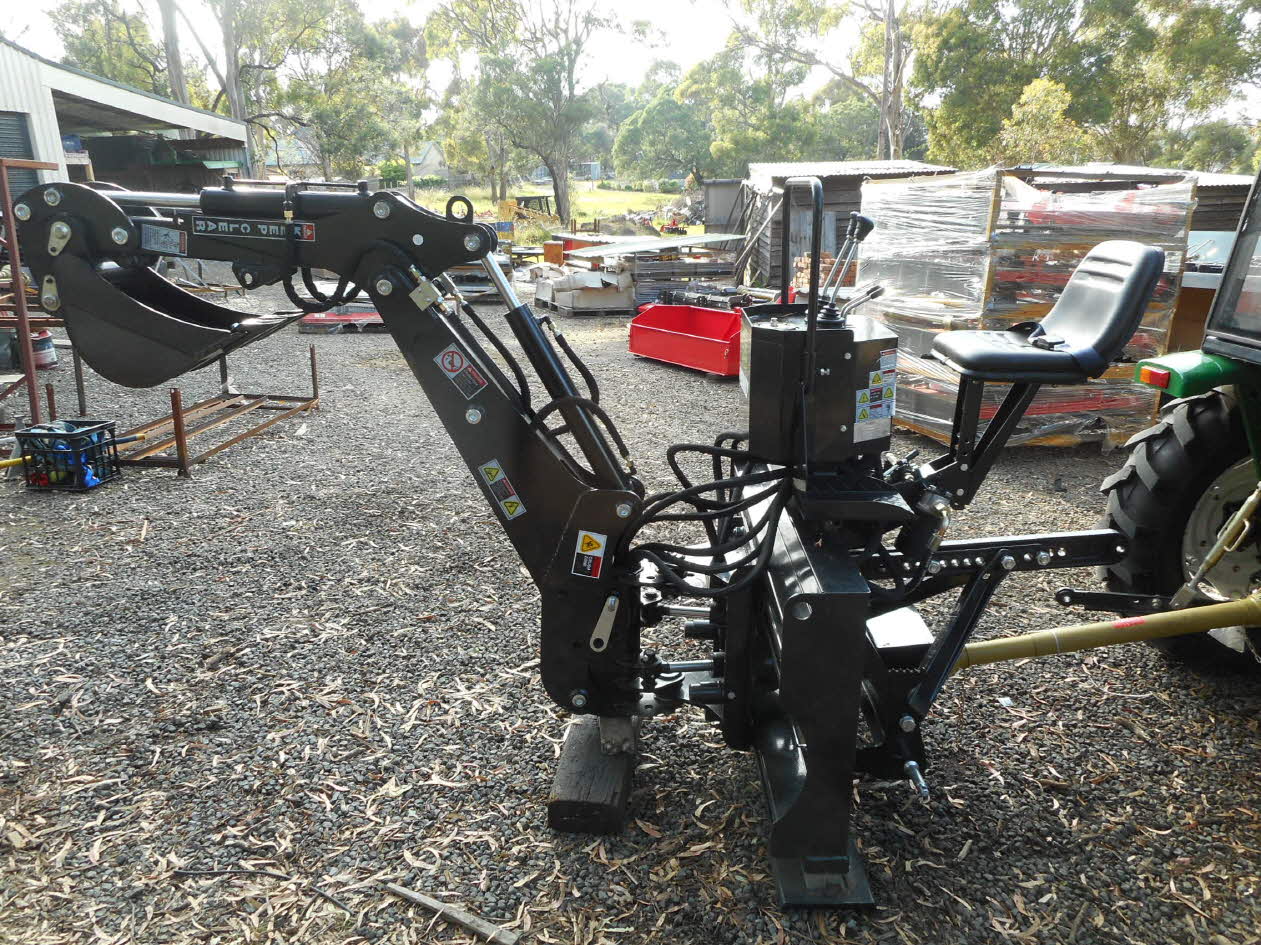

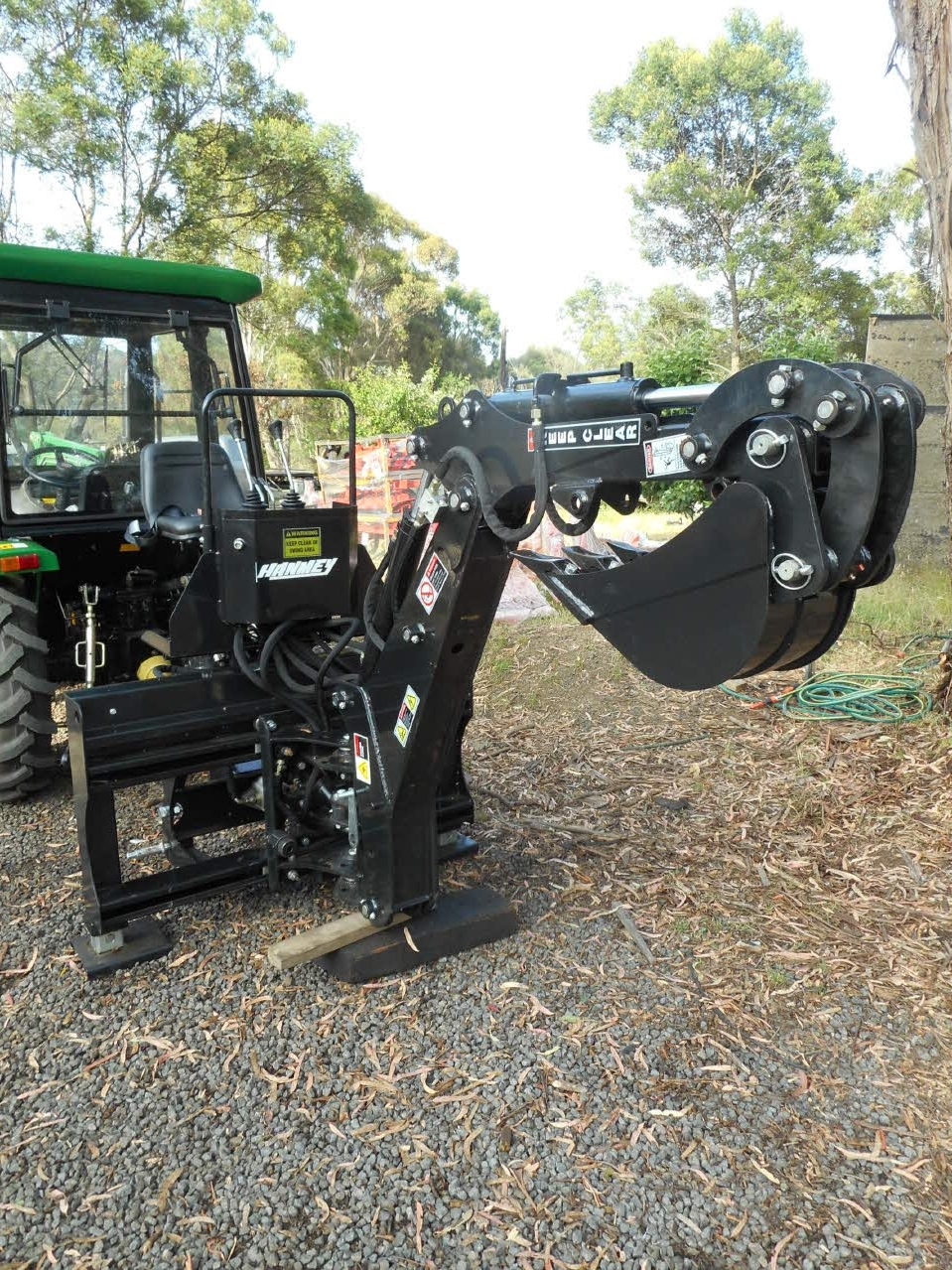

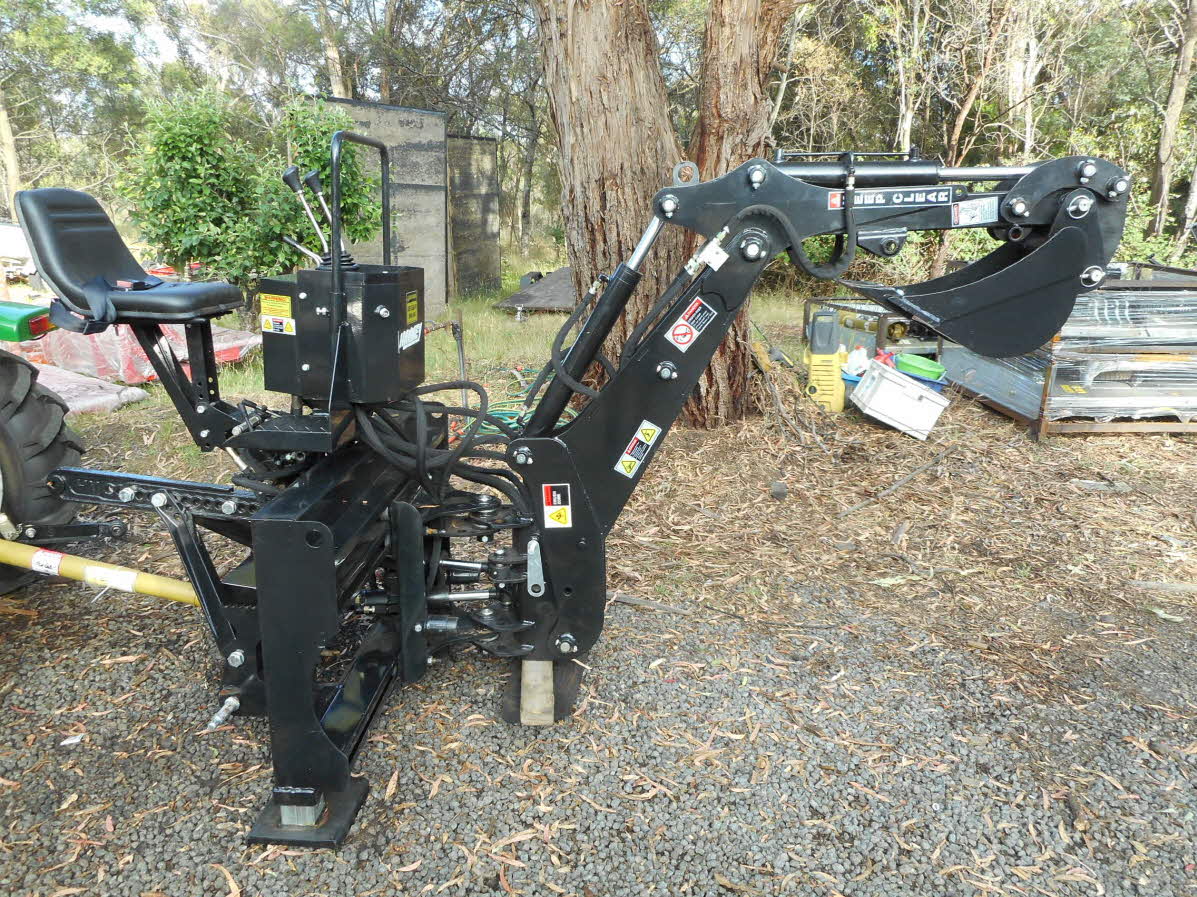

and the BHSM series has the sliding offset boom, which you can slide over either side so you can dig a trench close to the fence or building.

Full range of buckets from 900 mud buckets, 200, 300, 400mmGP buckets and rippers are available.



Features

  • PTO driven, with independent hydraulic system.
  • Professionally built with years of proven quality.
  • Sliding boom, so giving you the ability to dig alongside the fence of building, still with 180 degree slew capability.
  • Quality hydraulics with precise feel hydraulic functions and all hoses fitted with protective boots.
  • Professionally finished in powder coat finish.
  • Fully greaseable pins and bushes.
  • Fitted with hydraulic filters.
  • Each model is designed separately, rather than just adding some bigger parts to increase the capacity.
  • Look closely and see the quality welding and finish.
  • Full range of buckets and ripper available.
  • All models are assembled and ready for use. No assembly fee.
  • Can be picked up from Launceston or Hobart.
  • All filled with oil.
  • Comes complete with PTO Shaft.
  • No expensive freight from the main land.
  • All units are checked and workshop tested before handover.
  • 12 month local warranty, except on wearable or usable parts.



Specifications



MODEL

BHSM95

BHSM-155

BHSM-175

BHSM-195

BHSM-225

SPECIFICATION

Inch

Metric

Inch

Metric

Inch

Metric

Inch

Metric

Inch

Metric

Tractor HP

18-25hp

18-25hp

25-30hp

30-45hp



45-60hp

3-point linkage

Cat-1

Cat-1

Cat-1

Cat-1



Cat-1&2

Structure Weight

606lb

270kg

882lb

400kg

1146lb

520kg

1235lb

560kg

1653lb

750kg

(A)Loading Height

5.54'

1690mm

5.90'

1800mm

6.07'

1850mm

7.05'

2150mm

8.37'

2550mm

(B)Digging  Depth

3.11'

950mm

5.09'

1550mm

5.74'

1750mm

6.4'

1950mm

7.38'

2250mm

(C)Max. Height

7.48'

2280mm

7.87'

2400mm

10.24'

3120mm

10.4'

3170mm

11.32'

3450mm

(D)Digging Width

8.0'

2440mm

8.37'

2550mm

8.53'

2600mm

9.51'

2900mm

10.83'

3300mm

Unload height

4.26'

1300mm

5.28'

1610mm

5.91'

1800mm

6.56'

2000mm

7.55'

2300mm

Leg  Spread

3.77'

1150mm

4.07'

1240mm

5.58'

1700mm

5.58'

1700mm

5.58'

1700mm

Swing Angle(boom)

180°

180°

180°

180°



180°

Bucket  Width

11.4''

290mm

11.8''

300mm

11.8''

300mm

15.75''

300mm

15.75''

400mm

* Specifications can change at any time, without notice, so please check with our staff to be sure

Buckets/Ripper

Hanmey backhoe buckets are what you ever want in buckets, Built strong all round, reinforced sides and fitted with wear strips.
Need the extra 50mm width then simply weld on side cutters extending the width by 25mm on each side.
The ripper is designed so the cutters are easily replaced.







how it works

  • Not an expert operator, he needs more practice, but this gives you an idea of power and motion speed!
