Unfortunately we are out of Stock and will not be stocking these models anymore.


Print Friendly, PDF & Email

Backhoes Hanmey

Take the back breaking work out of owning property.
Why not do your own earthmoving instead of waiting for expensive contractors?
The Hanmey backhoe will soon pay for itself by simply hooking it up to your tractor.

Hanmey has been sold over many years in Australia and are in the top end of quality implements from China.
The backhoes are attached to the 3 point linkage on the tractor, powered by the PTO and run with independent hydraulic systems.
Quality components fitted all round, with precise feel functions.

With the two  series of models:
BHM are fixed boom models where the boom is fixed in the centre but you still have 180 degree slew
and the BHSM series has the sliding offset boom, which you can slide over either side so you can dig a trench close to the fence or building.

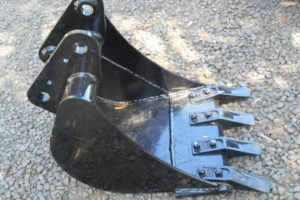

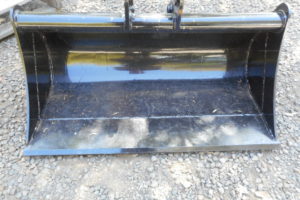

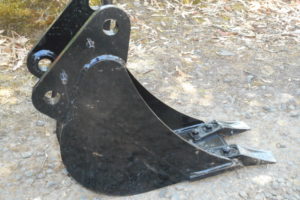

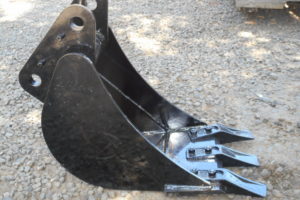

Full range of buckets from 900 mud buckets, 200, 300, 400mmGP buckets and rippers are available.



Features

  • PTO driven, with independent hydraulic system.
  • Professionally built with years of proven quality.
  • 180 degree slew capability.
  • Quality hydraulics with precise feel hydraulic functions and all hoses fitted with protective boots.
  • Professionally finished in powder coat finish.
  • Fully greaseable pins and bushes.
  • Fitted with hydraulic filters.
  • Each model is designed separately, rather then just adding some bigger parts to increase the capacity.
  • Look closely and see the quality welding and finish.
  • All models are assembled and ready for use. No assembly fee.
  • Can be picked up from Launceston or Hobart.
  • All filled with oil.
  • Comes complete with PTO Shaft.
  • No expensive freight form the main land.
  • All units are checked and workshop tested before handover.
  • 12 month local warranty, except on wearable or usable parts.



Specifications

MODEL

BHM-95

BHM-175

BHM-195

BHM-225

SPECIFICATION

Inch

Metric

Inch

Metric

Inch

Metric

Inch

Metric

Tractor HP

12-20hp

25-30hp

30-45hp

45-60hp

3-point linkage

Cat-1

Cat-1

Cat-1

Cat-1&2

Structure Weight

551b

250kg

1120lb

500kg

1190lb

540kg

1543lb

700kg

(A)Loading Height

4.43'

1350mm

7.78'

2370mm

7.94'

2420mm

8.37'

2550mm

(B)Digging  Depth

3.12'

950mm

5.74'

1750mm

6.4'

1950mm

7.38'

2250mm

(C)Max. Height

6.89'

2100mm

10.24'

3120mm

10.4'

3170mm

11.32'

3450mm

(D)Digging Width

7.55'

2300mm

8.53'

2600mm

9.51'

2900mm

10.83'

3300mm

Unload height

4.1'

1250mm

5.91'

1800mm

6.56'

2000mm

7.55'

2300mm

Leg  Spread

6.23'

1900mm

5.58'

1700mm

5.58'

1700mm

5.58'

1700mm

Swing Angle(boom)

180°

180°

180°

180°

Bucket  Width

11.4"

290mm

11.8''

300mm

11.8''

300mm

15.75''

400mm

* Specifications can change at any time, without notice, so please check with our staff to be sure

Buckets/Ripper

Hanmey backhoe buckets are what you ever want in buckets, Built strong all round, reinforced sides and fitted with wear strips.
Need the extra 50mm width then simply weld on side cutters extending the width by 25mm on each side.

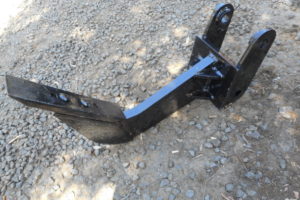

The ripper is designed so the cutters are easily replaced.







how it works

  • Not an expert operator, he needs more practice, but this gives you an idea of power and motion speed!
