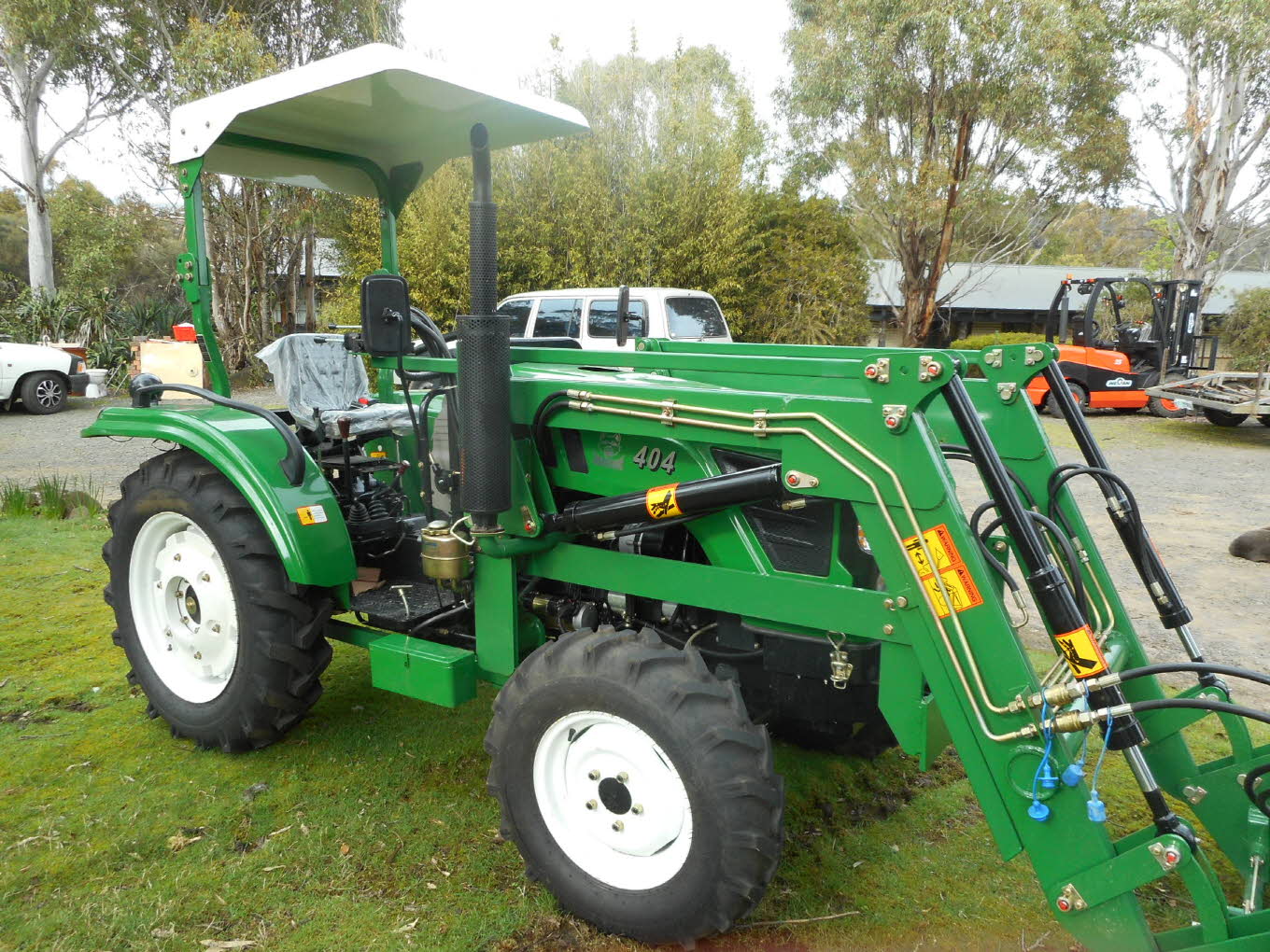

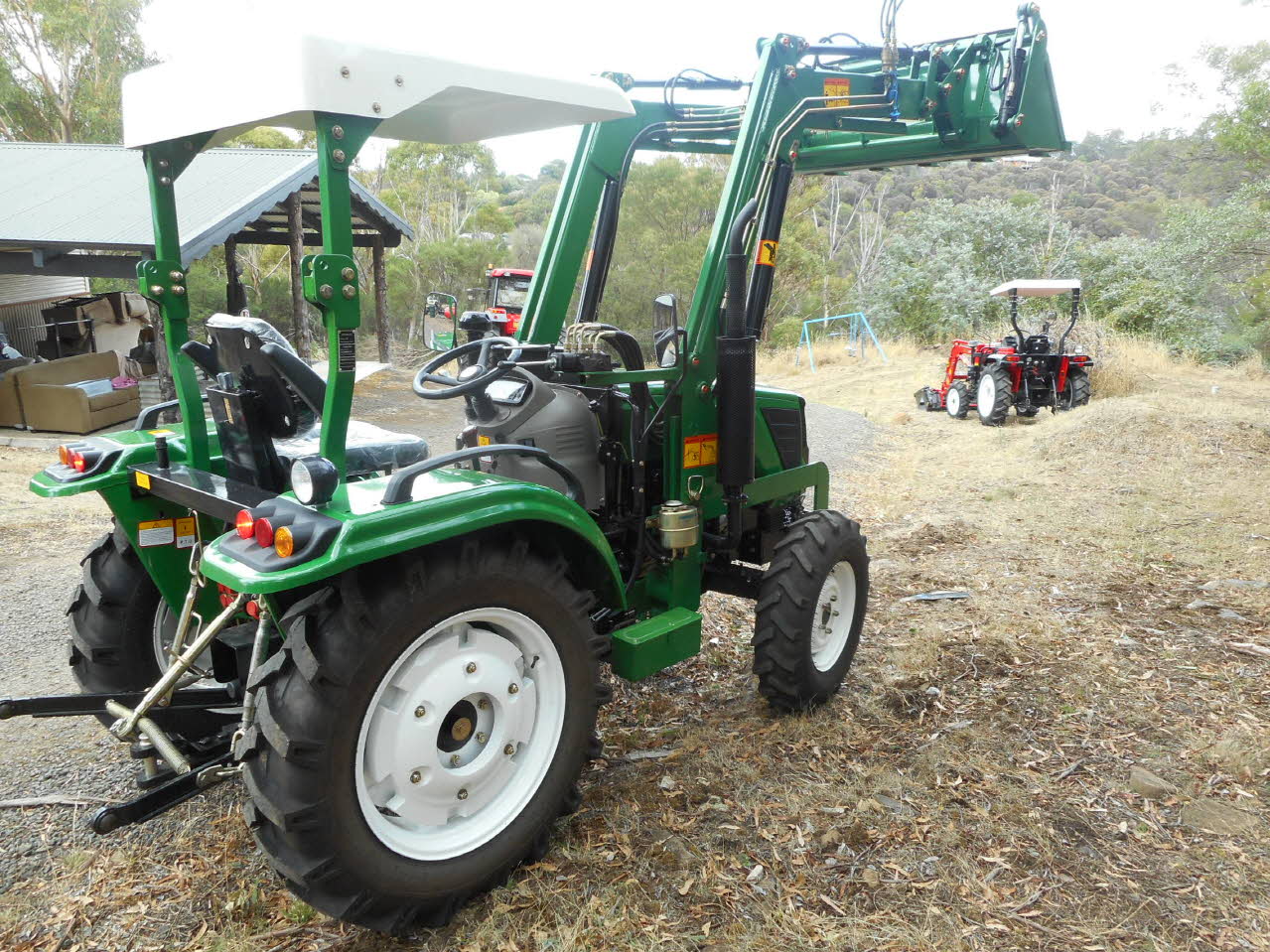

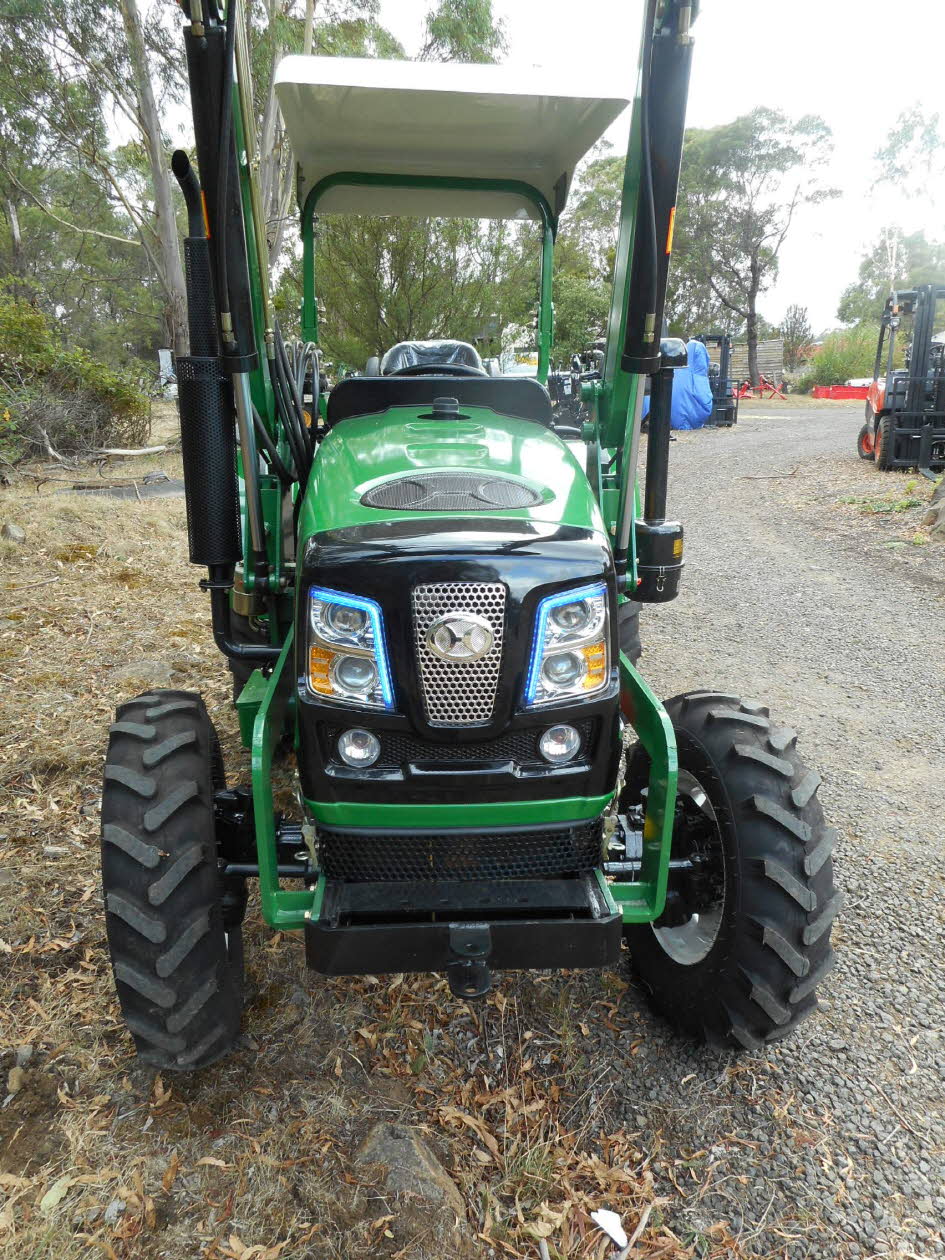

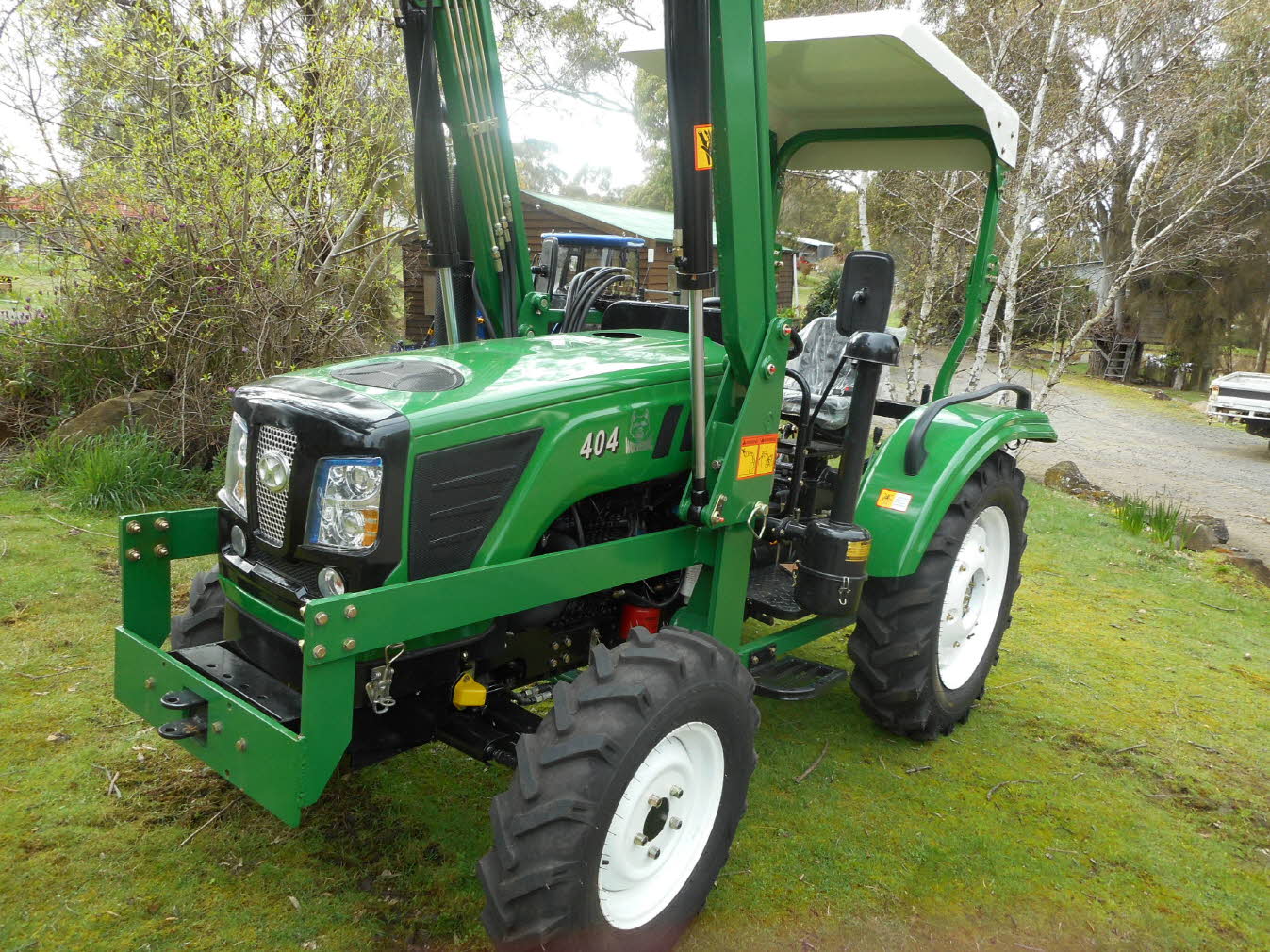

HUAXIA-HX404

Unfortunately we are out of Stock and will not be stocking these models anymore.
Call us if you require spare parts on these below models.





* 2-4 wheel drive selectable, with rear differential lock.

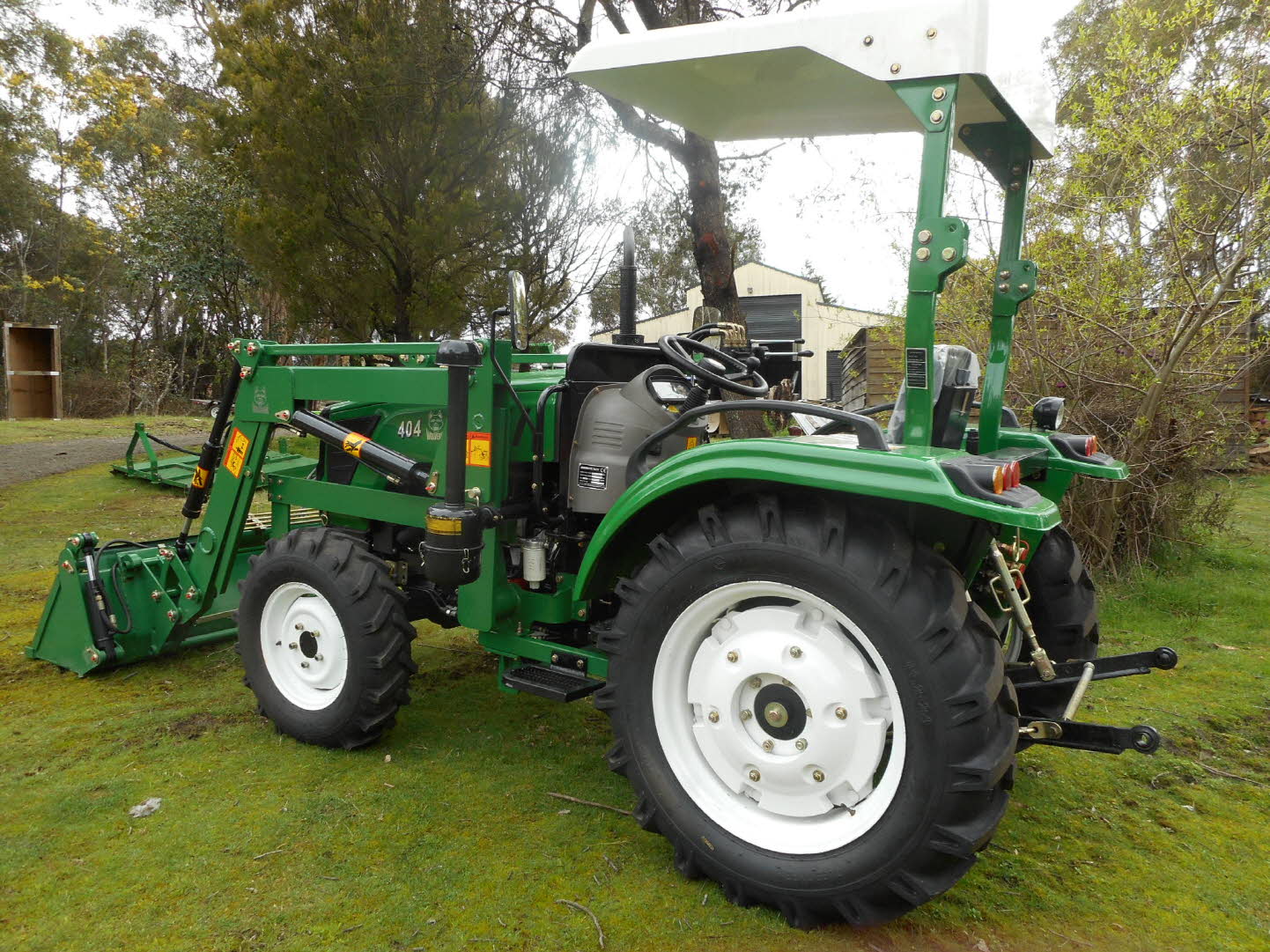

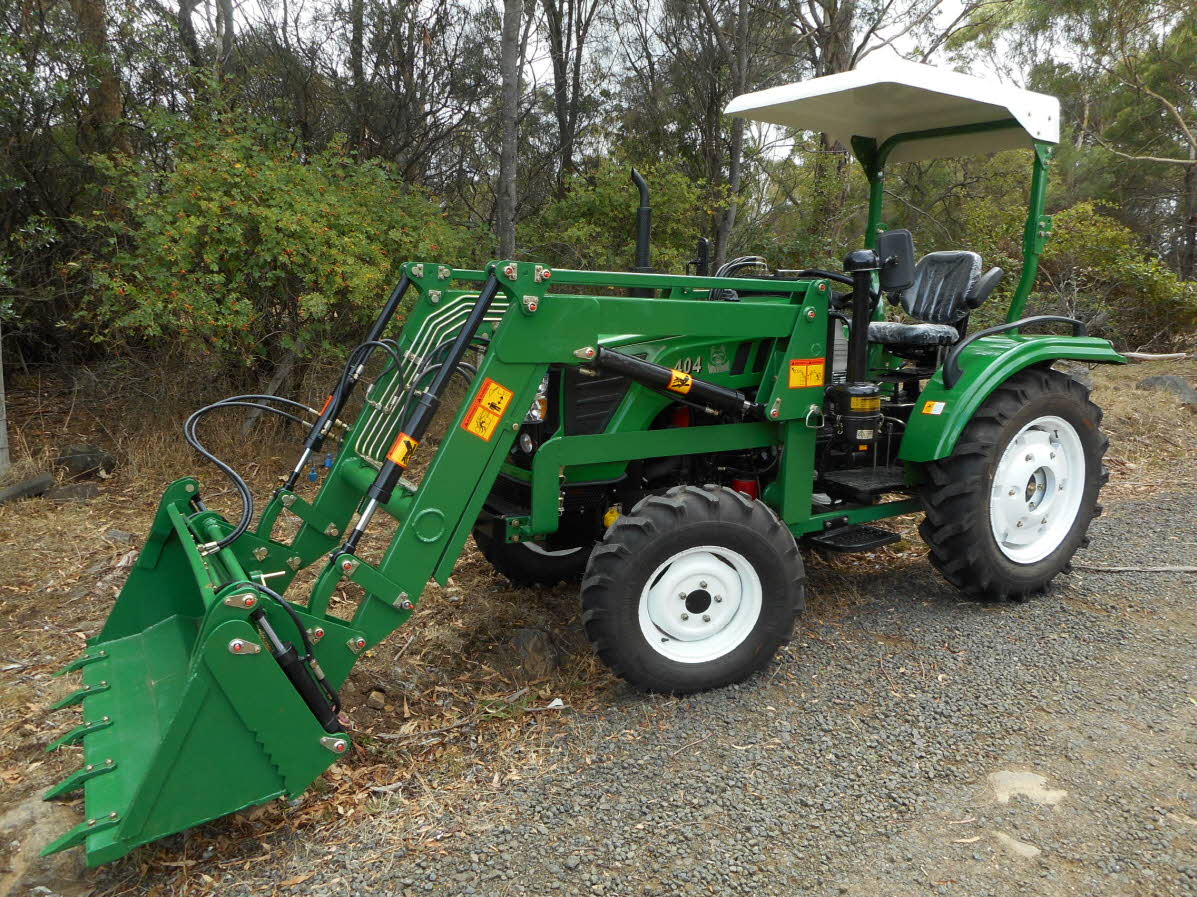

* Most are fitted with Front end loader [ FEL] and 4 in 1 bucket.

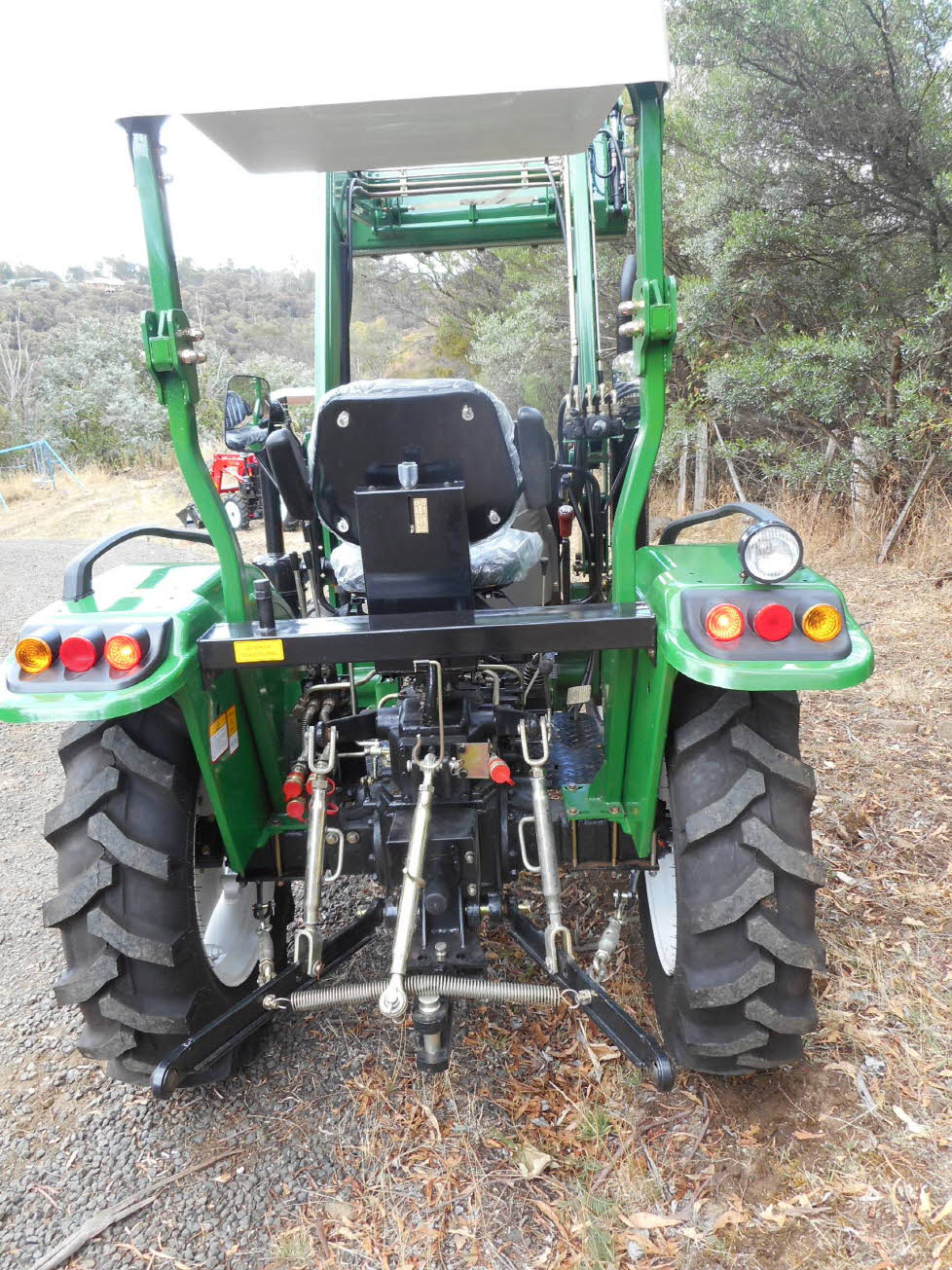

* Fitted with two sets of rear hydraulic remotes.

* Dual Clutch with two speed PTO.

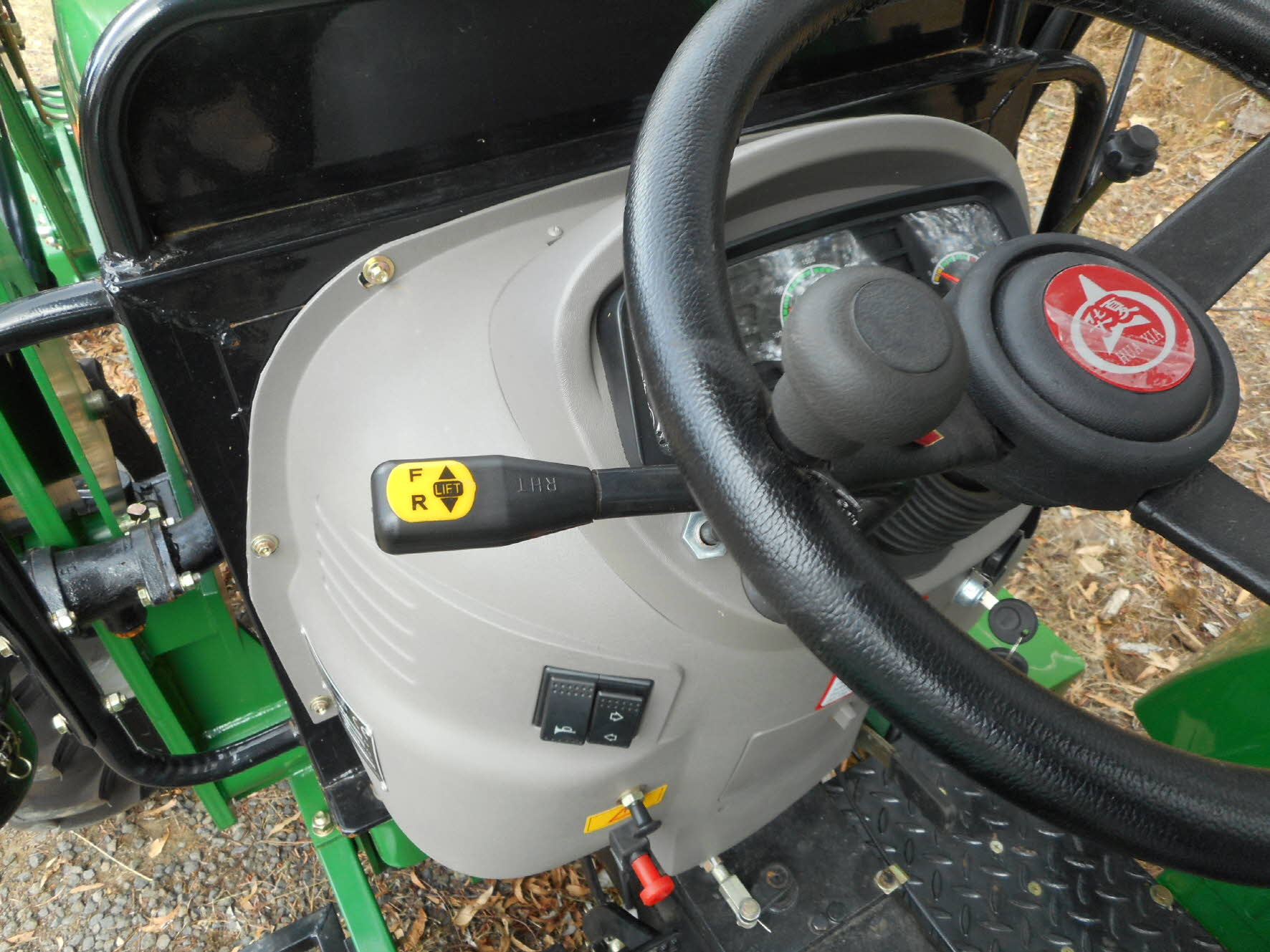

* Most are fitted with Shuttle shift Transmission.

* Suspension seat.

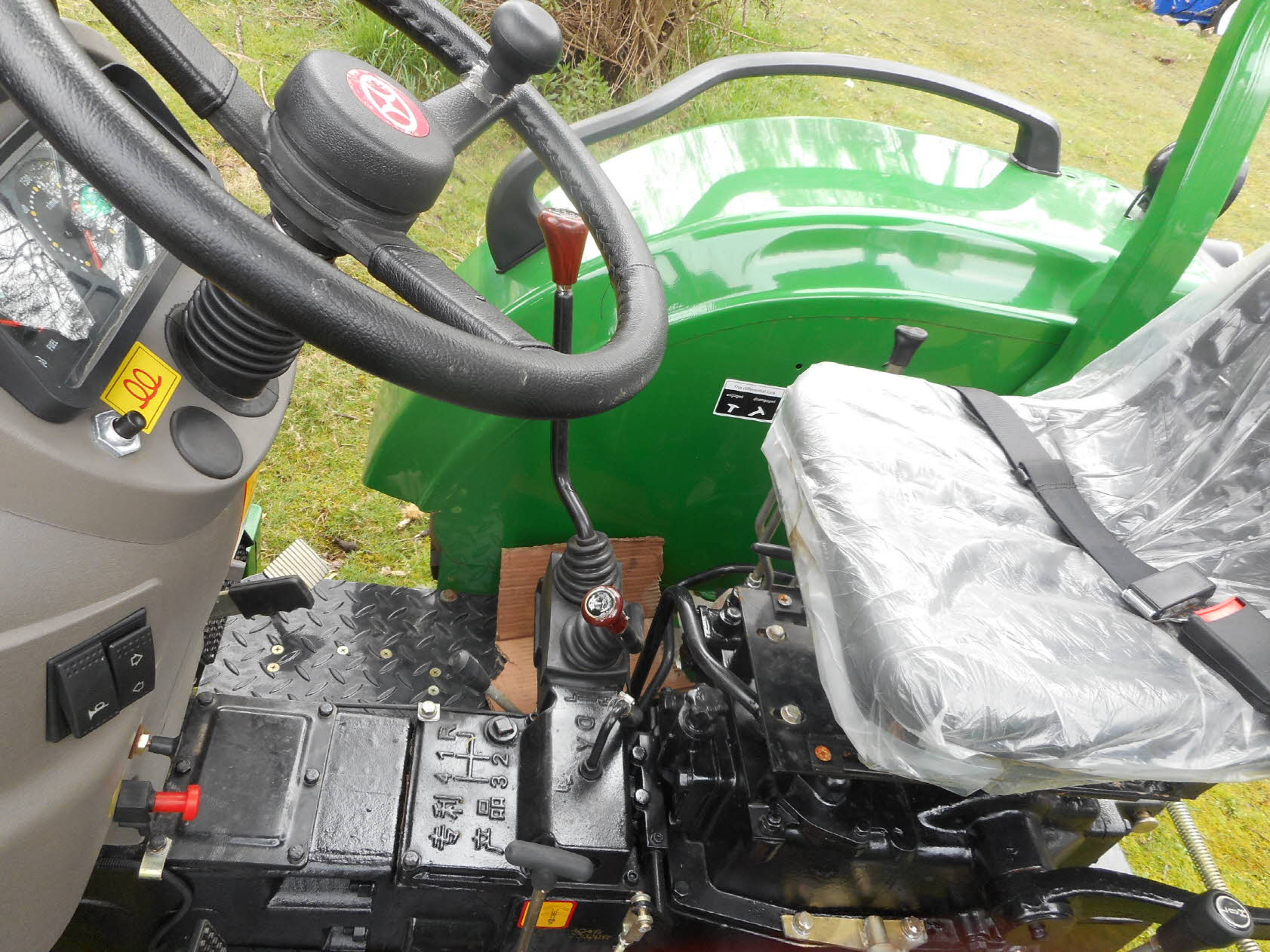

* Side mounted gear Lever.

* local comprehensive Warranty and spare parts supply, no third party.

* Now proven in quality.


Print Friendly, PDF & Email
  • Features
Drive type 4WD
Horsepower: 40hp
Overall length (front weight to link end): 3350mm
Overall width (outer wheel tread):  1500mm
Height to R.O.P.S (top): 1900mm
Height to canopy (top): 1900mm
Height to steering wheel: 1700mm
Ground clearance : 340mm
Tractor weight with ballast: 1280kg
Tractor weight with loader: 1830kg
Minimum turning radius 3±0.2m
Speed forward: 2.1-31.97
Speed reverse: 2.76-12.76
2.1-31.97, Shuttle shift
Suspension Seat: YES
Hydraulic Remotes: YES
Step Through Deck: YES
Bonnet Engine Access: YES
PTO Clutch: YES
Air Conditioning: NO

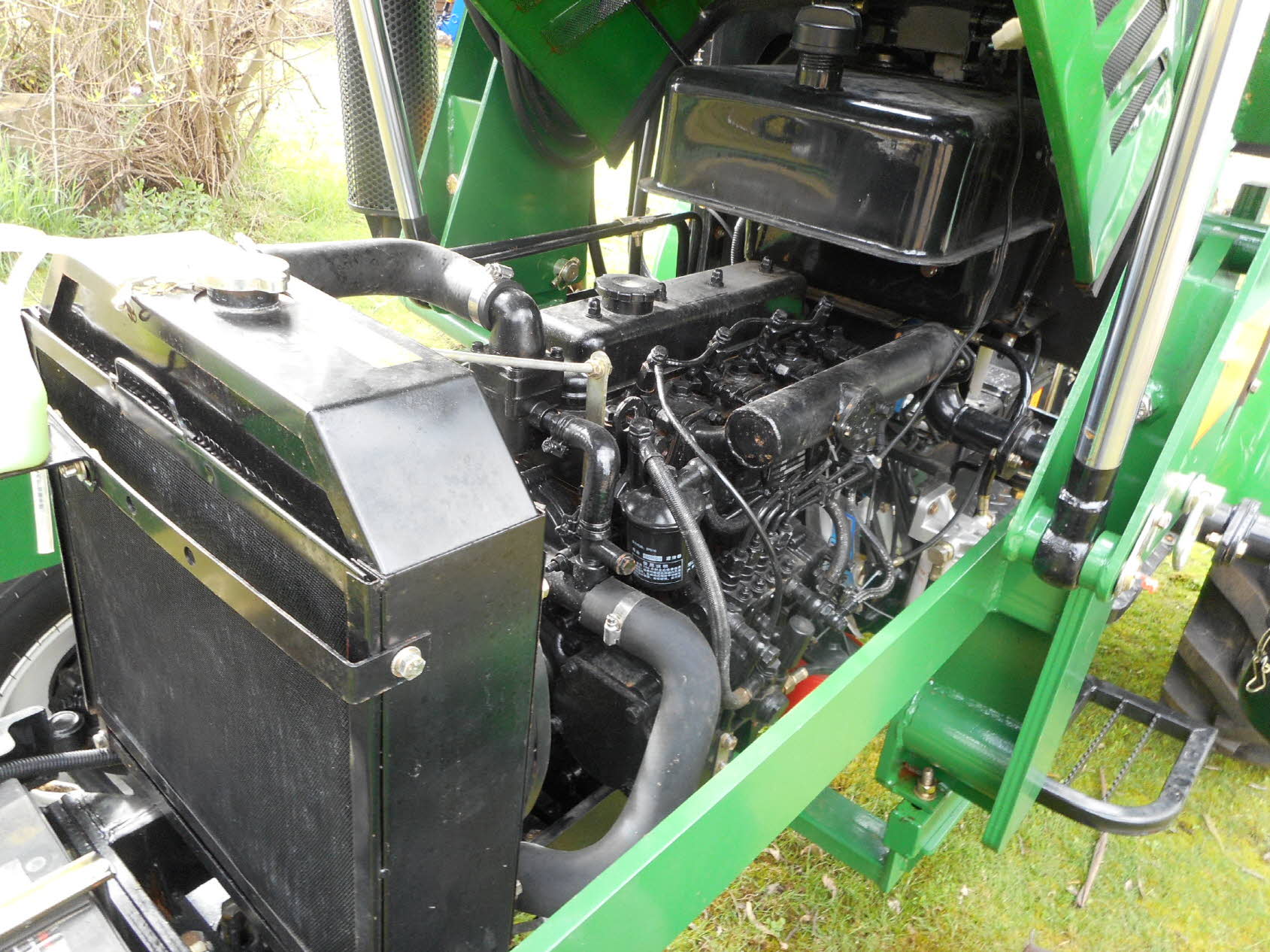

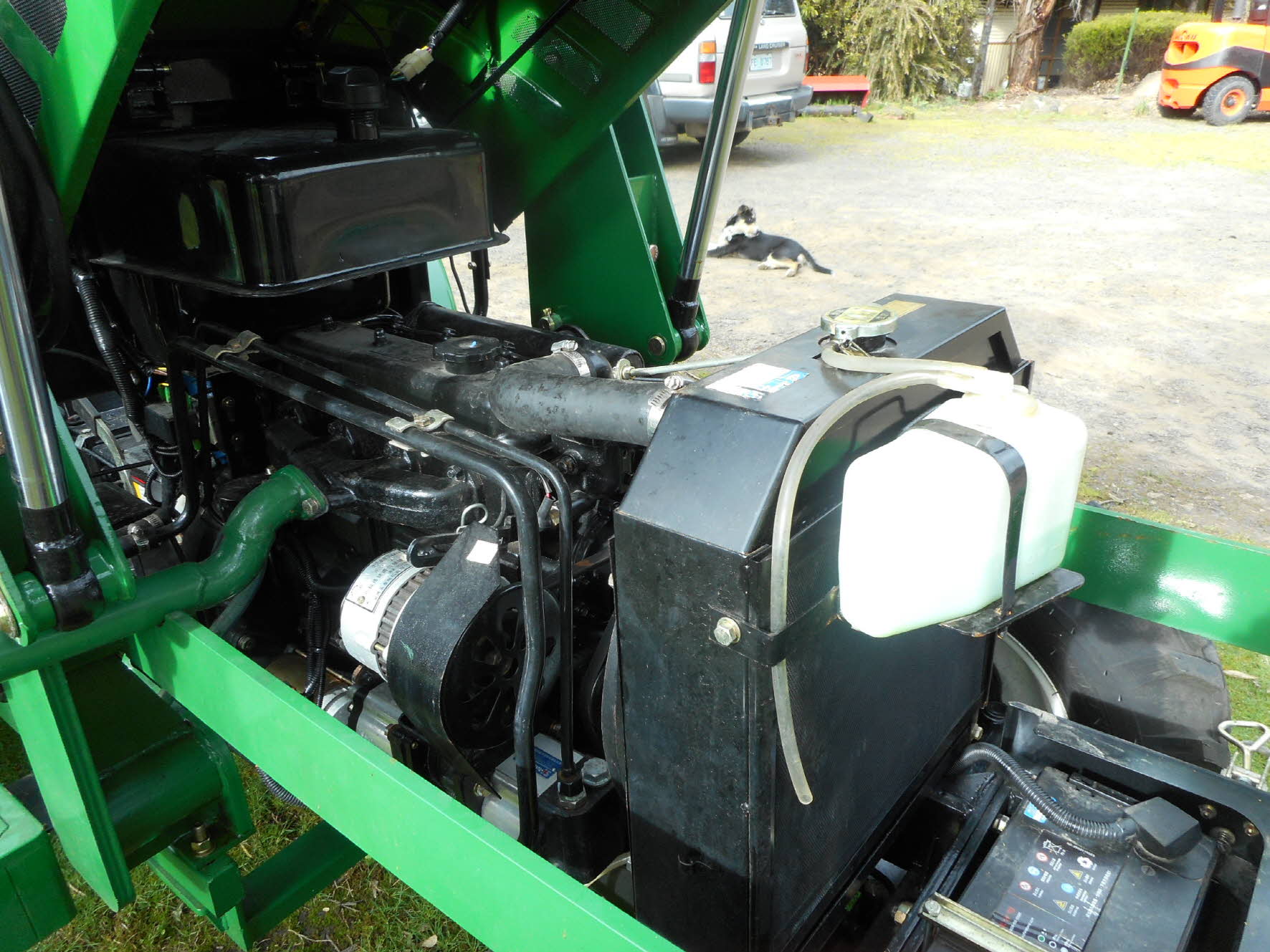

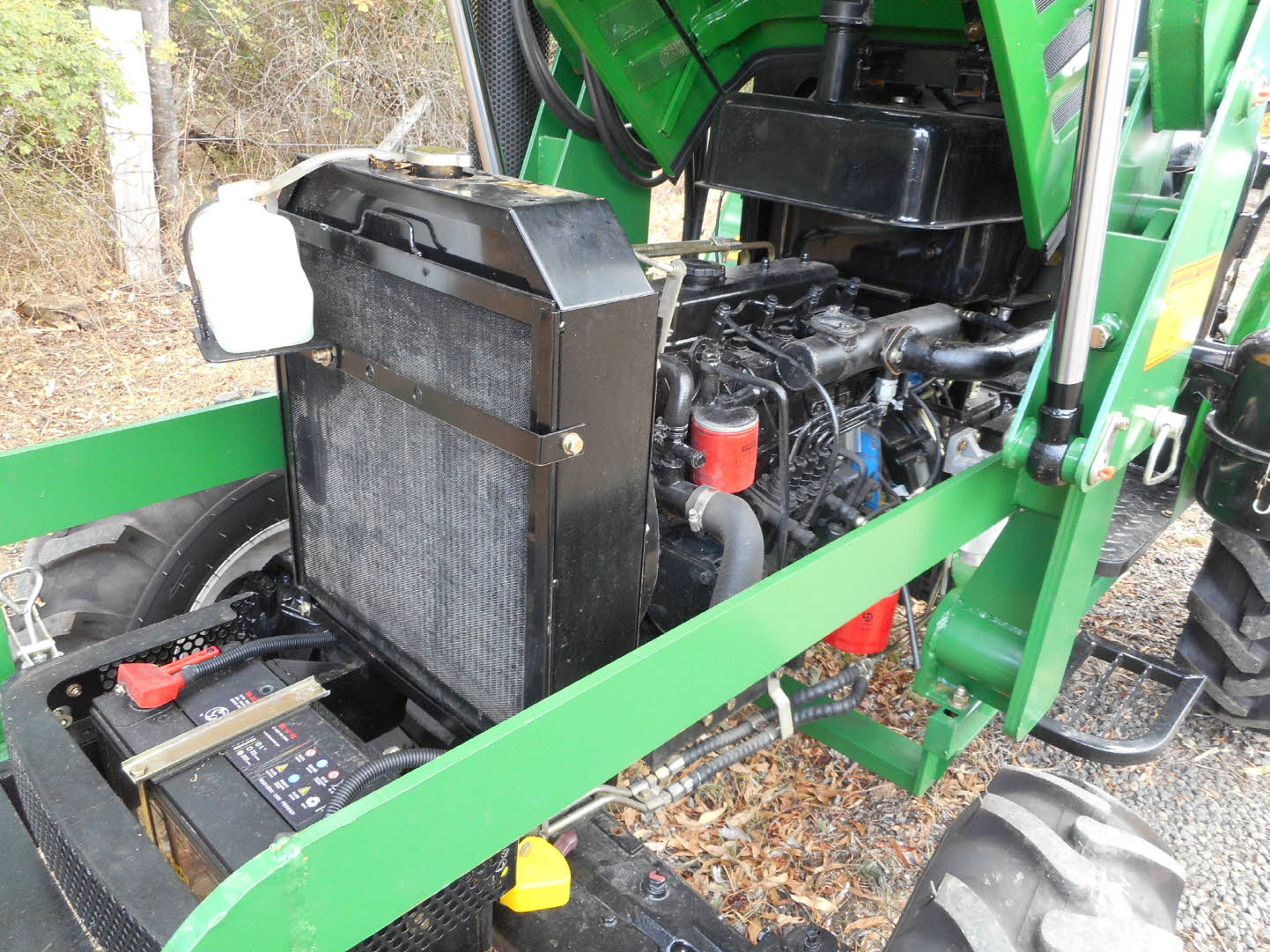

  • Engine Details
Engine manufacturer: HuaYuan Lai Dong Engine
Which other main china brands use this engine : Foton Lovol,Dongfeng,SH
Model: LD4L22BT
Type: Water cooled,vertical
Gross power(12hr rated power kW/hp): 30 KW
Cylinders: 4
Bore and stroke: 4*85mm*90mm
Displacement: 2.156L
Speed rated at:  2350r/min
  • Transmission /differential details
Transmission brand:  Huaxia
Transmission type: Central Gear Transmission [Foton style]
Which other tractor brands use this type of Transmission:  Foton Lovol, DongFeng,SH
Transmission Type: Central Gear Transmission
Gearbox: (4+1)*2 gear shifts

8 forward/ 8 reverse, Shuttle shift
Gears: Spiral Bevel Gear
Brake type: Disc Brake
Clutch type:  Double Clutch
Rear differential lock: yes
PTO type: Double Speed
PTO rotating speed:  540/720rpm
PTO kW/HP:  21.8 KW/35HP
3PL capacity at Ball End: 5.29KN
  • Tyres
Front tyre size - Agricultural: 750-16
Rear tyre size - Agricultural: 11.2-24
Front tyre size - Turf: NO
Rear tyre size - Turf: NO
Front tyre size - Industrial: N/A
Rear tyre size - Industrial: N/A

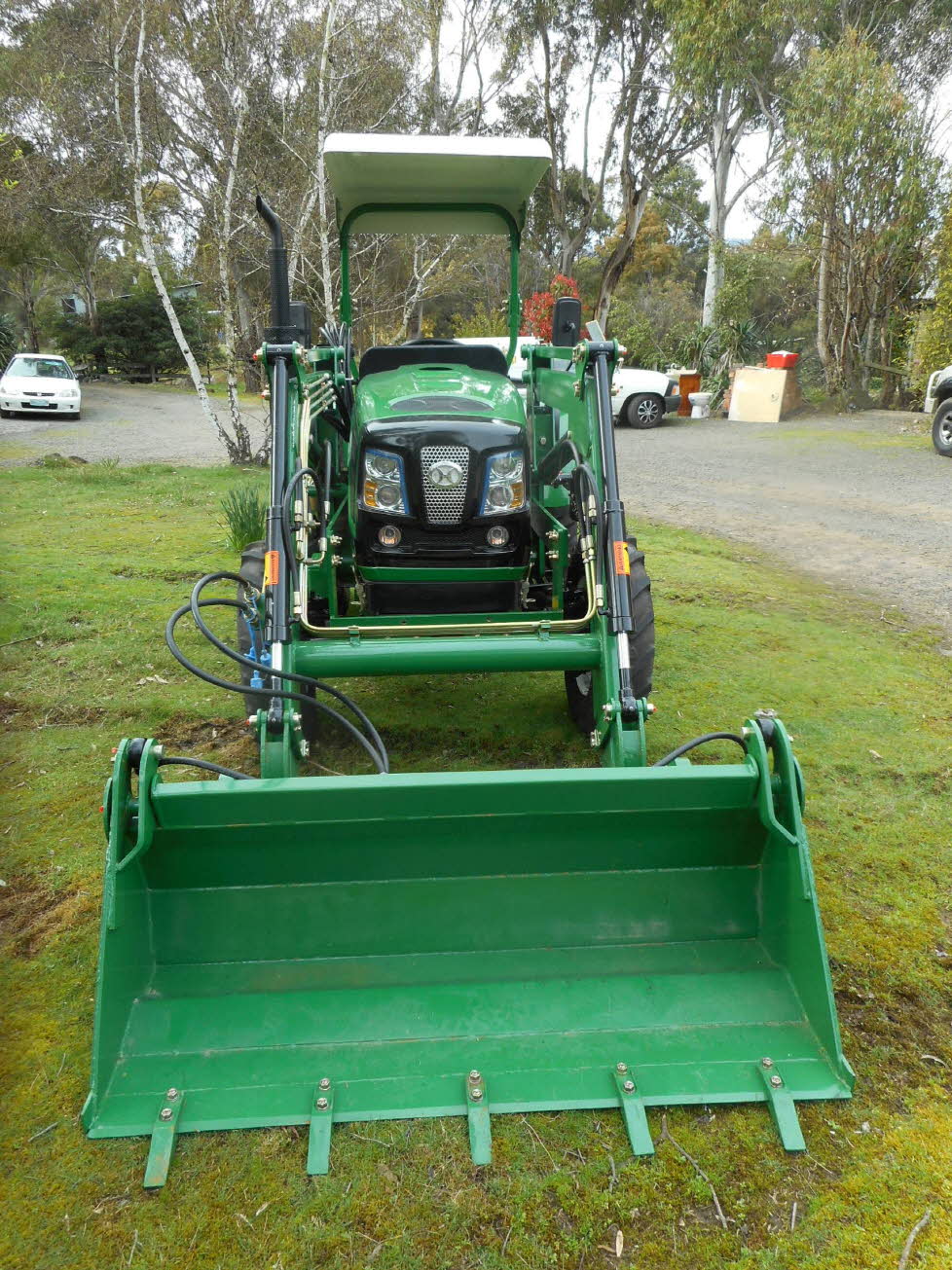

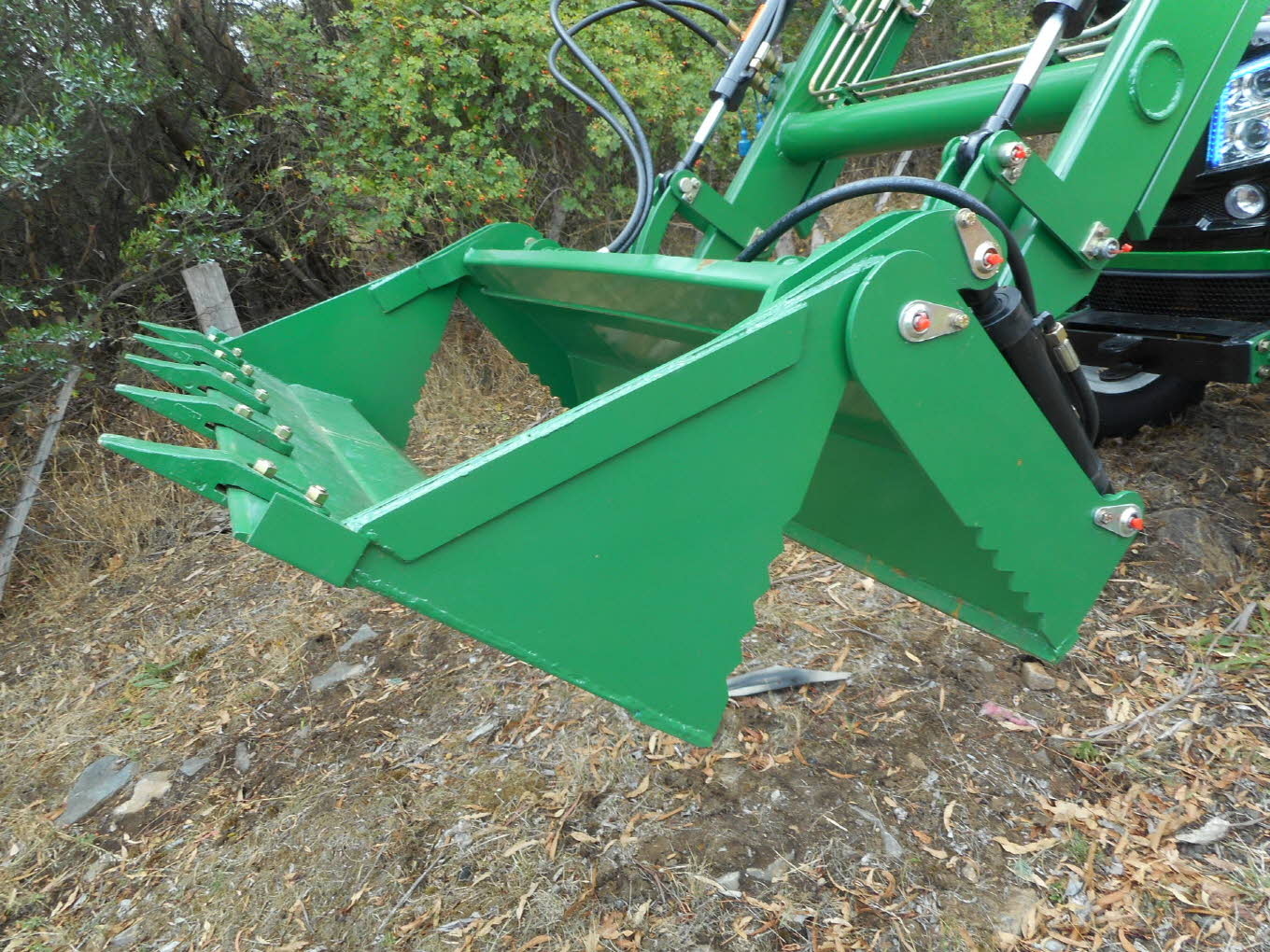

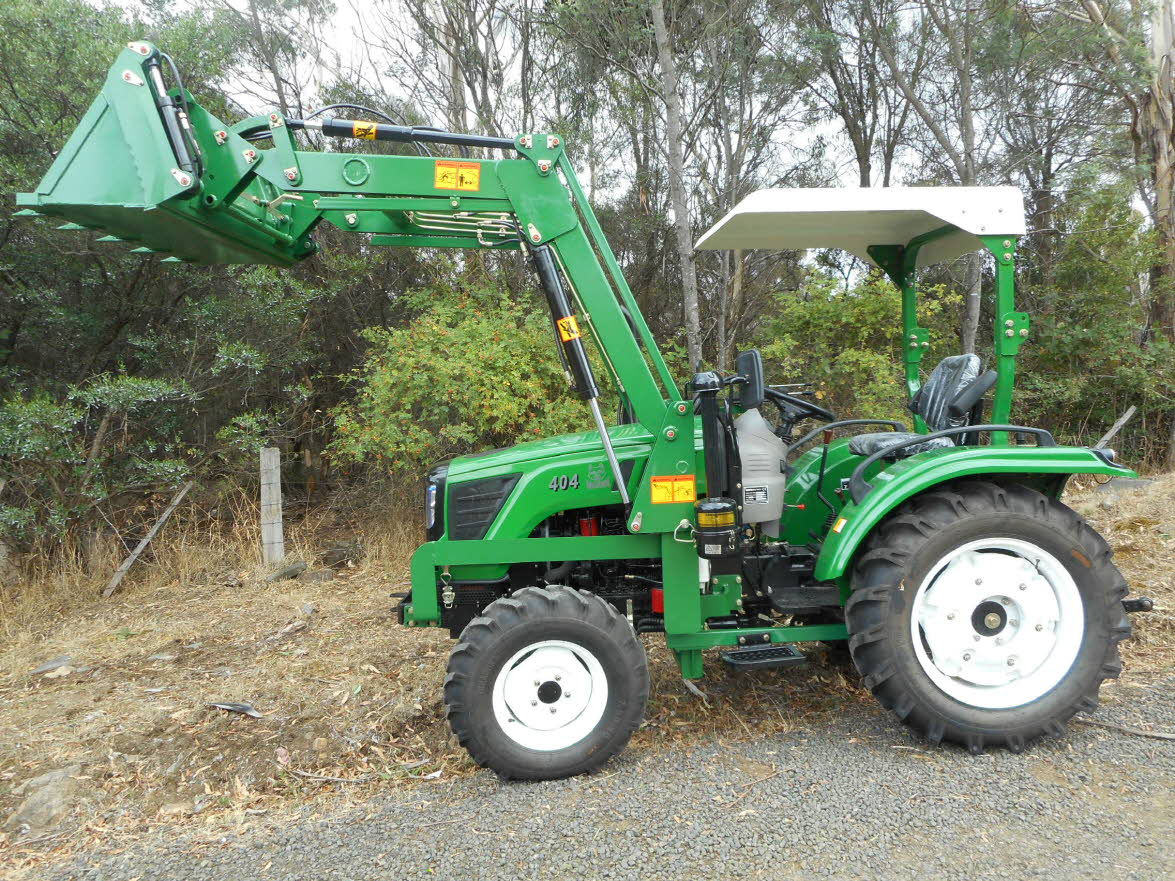

  • Front end loader
Hydraulic pumps Brand: Weifang Xi Xiang
Pump model: HLCB-D06/06
Model No: TZ-4
Supply: Factory in China
Loader Control: Hydraulic system
Bucket width:  1600mm
Quick Release from Tractor: YES

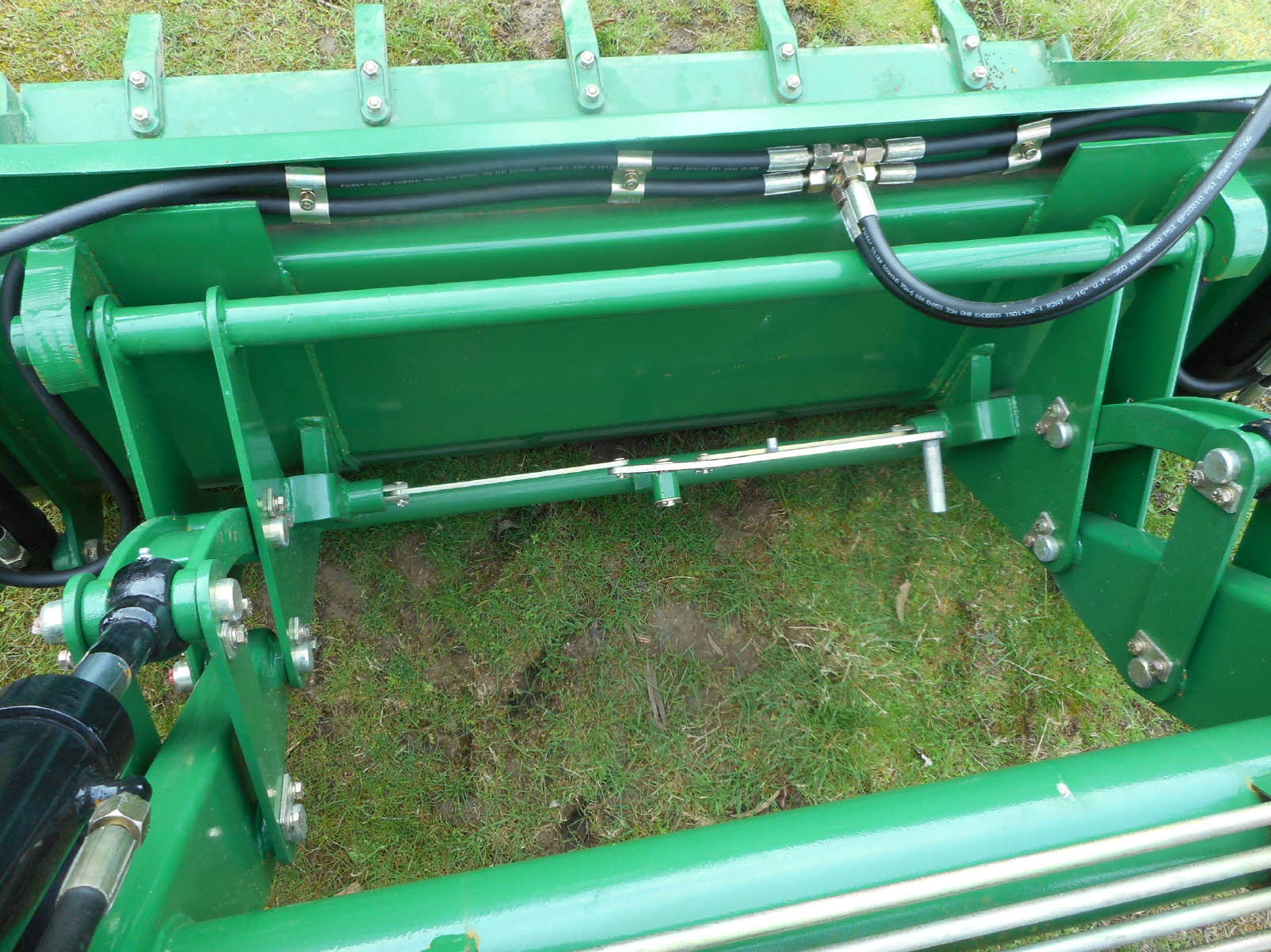

Quick Release Bucket: YES
(A) Lift height at Pivot Point: 2000mm
(B) Dump clearance: 900mm
(D) Crowd angle:  42°
(E) Dump angle:  47°
Lifting capacity: 0.23m³
Weight: 550kg

* Specifications can change at any time, without notice, so please check with our staff to be sure
