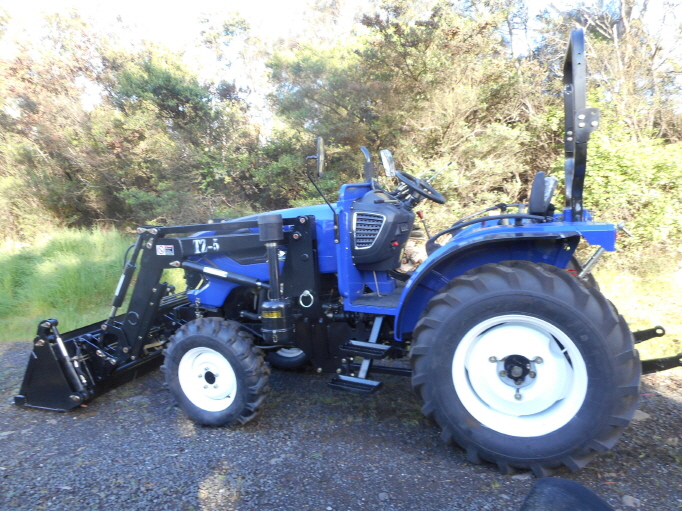

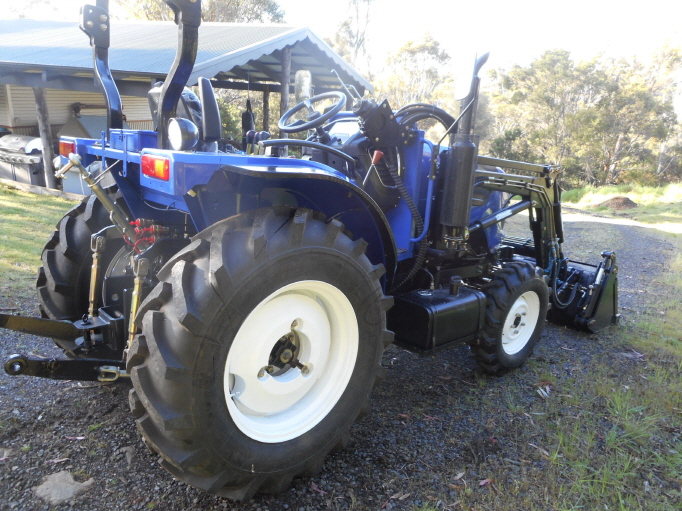

TED-554

Unfortunately we are out of Stock and will not be stocking these models anymore.
Call us if you require spare parts on these below models.

Print Friendly, PDF & Email




  • Features

* 2-4 wheel drive selectable, with rear differential lock.
*  Chassis that can take up too  60hp engine
* Famous LD Diesel  engine,  ralatively quiet and smooth in operation.

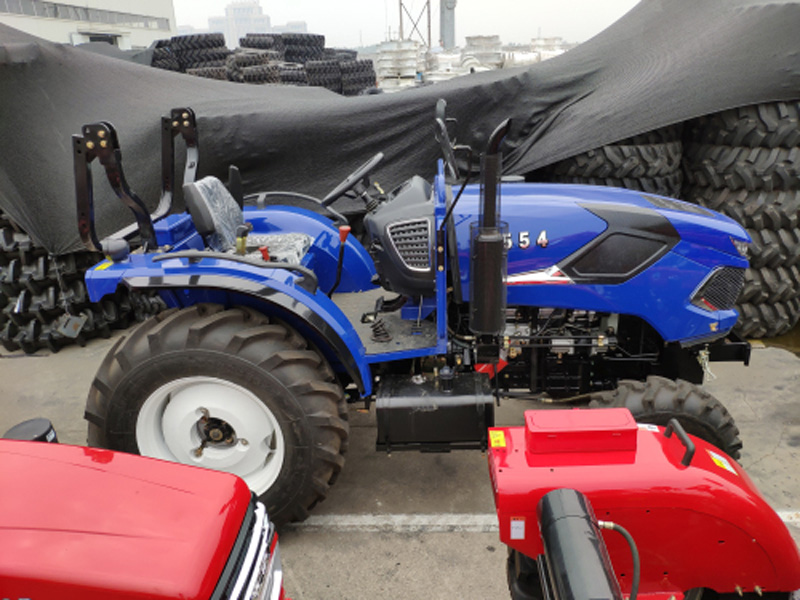

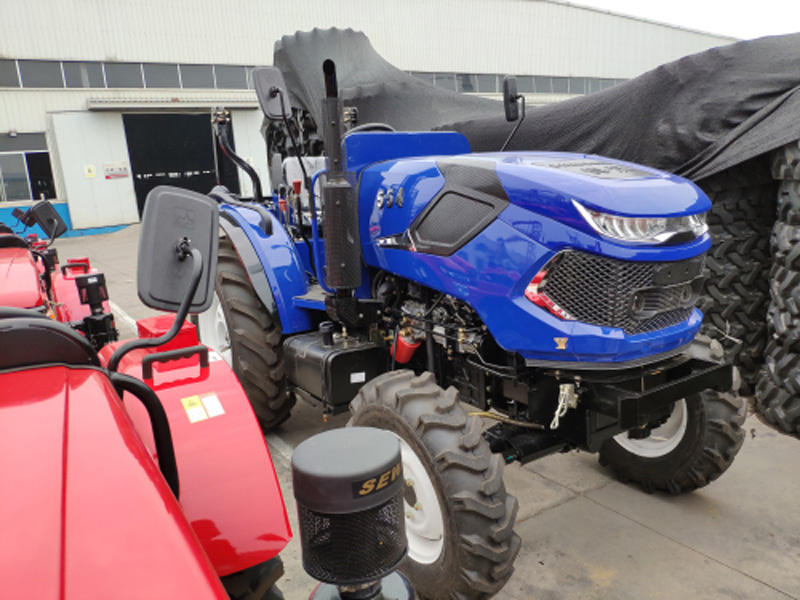

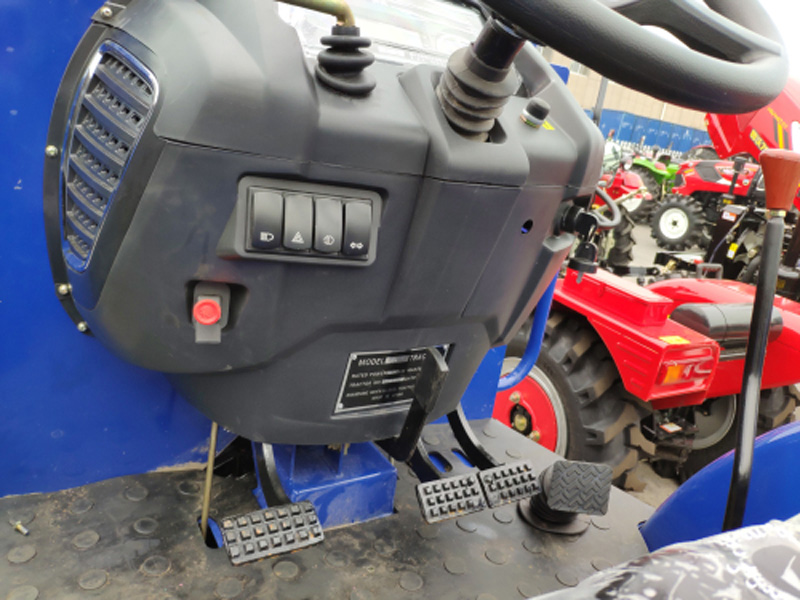

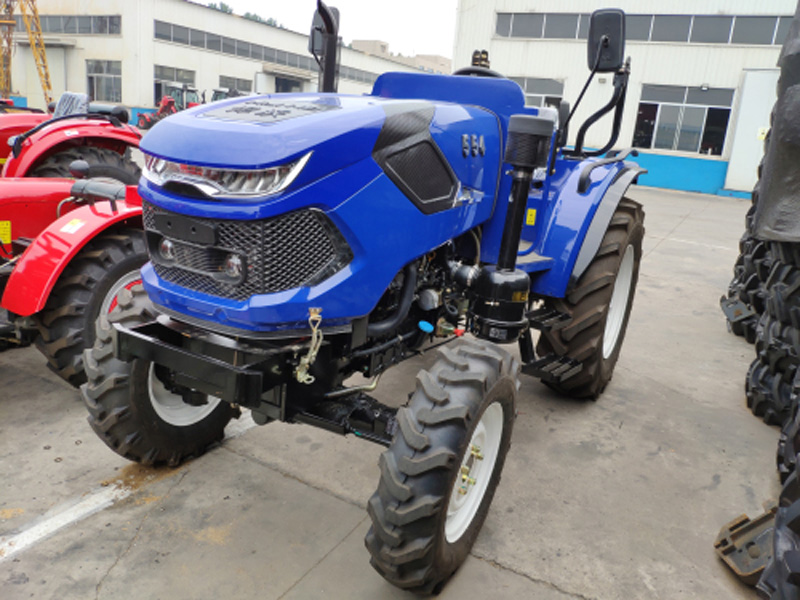

* Flat floor option.

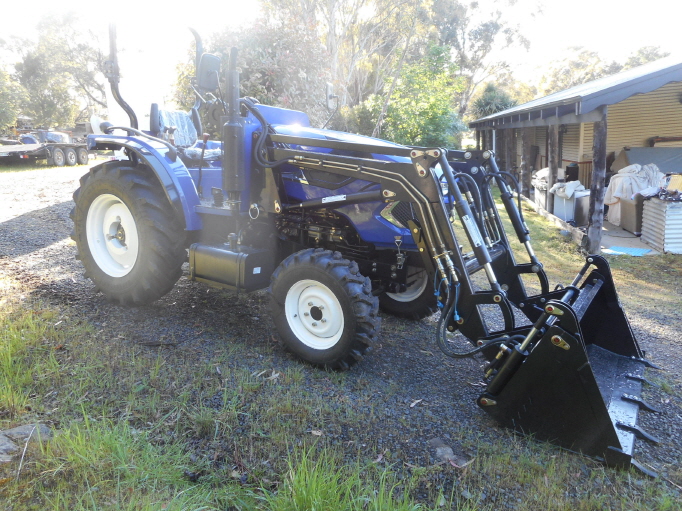

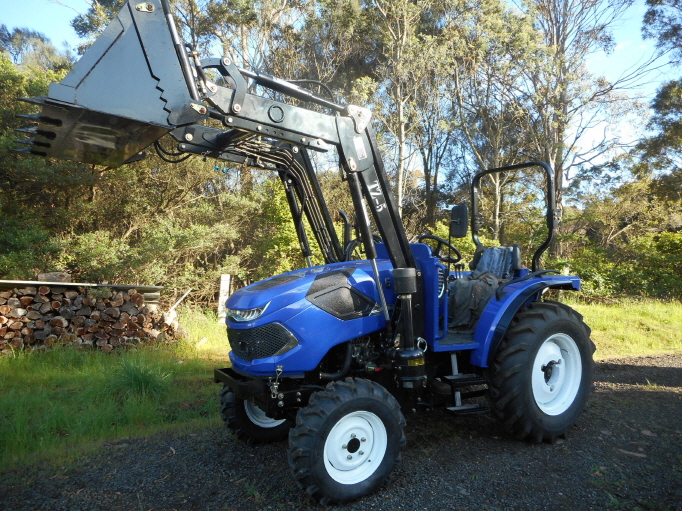

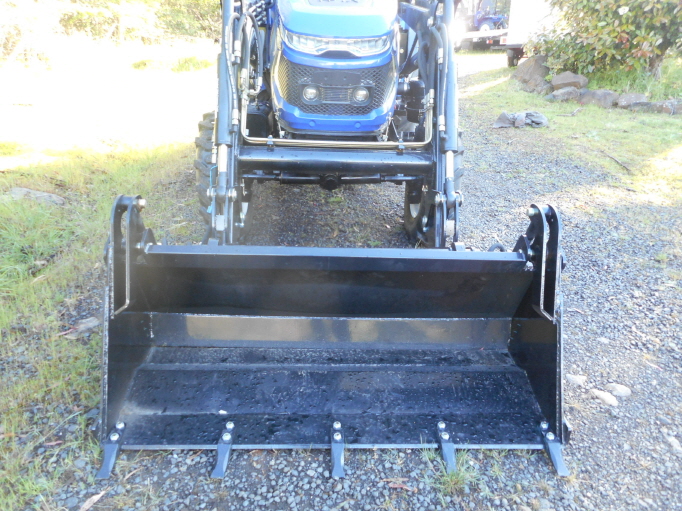

* Most are fitted with Front end loader [ FEL] and 4 in 1 bucket.

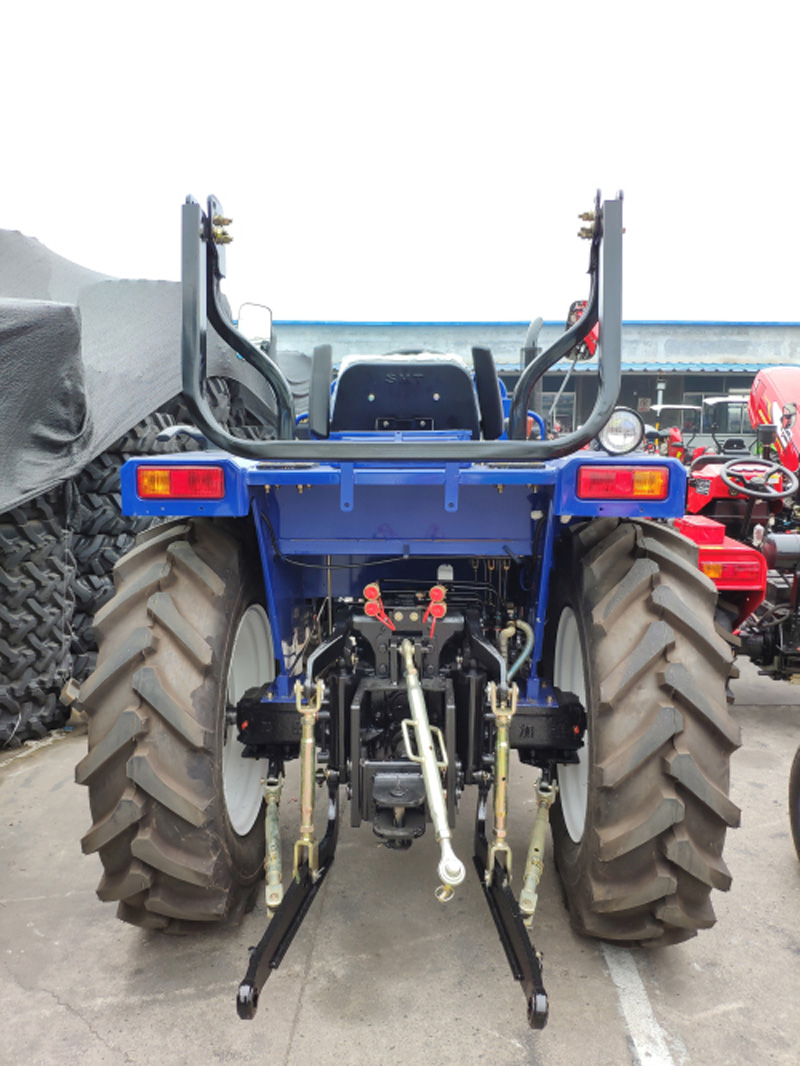

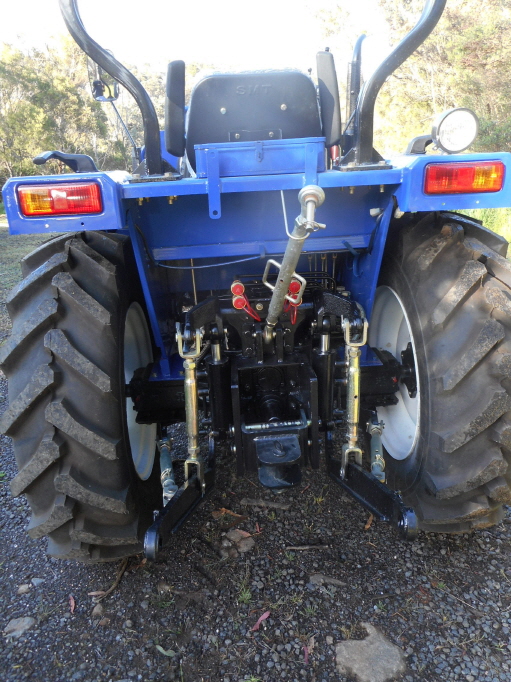

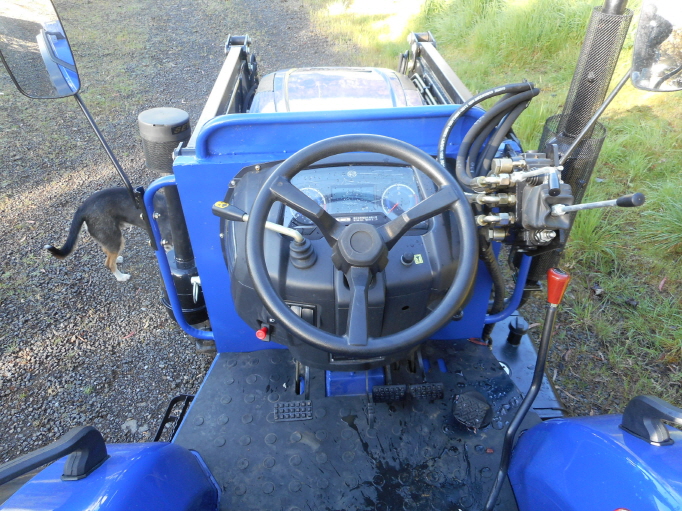

* Fitted with two sets of rear hydraulic remotes.
* Dual Clutch with two speed PTO.
* Most are fitted with Shuttle shift Transmission.

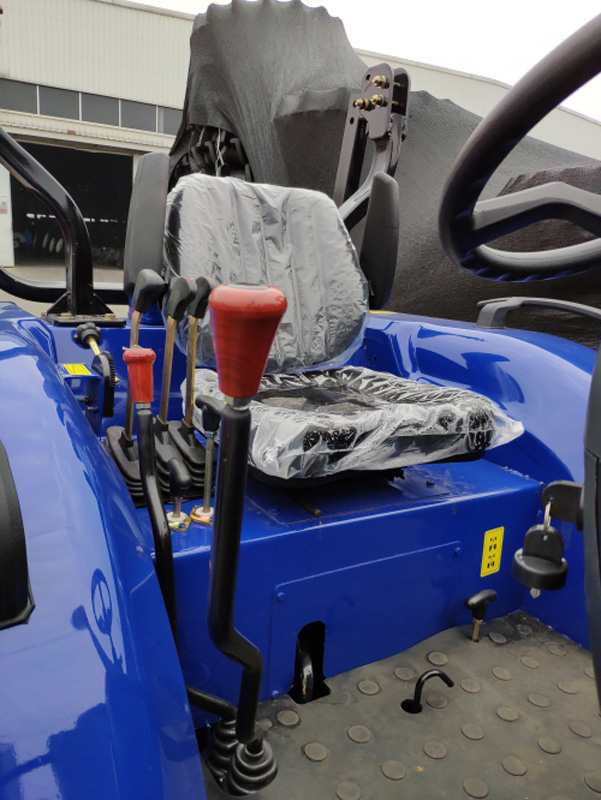

* Suspension seat.
* Side mounted gear Lever.
* Local comprehensive Warranty and spare parts supply, no third party.
* Proven in quality.

  Features

Drive type 4WD
Horsepower: 55hp
Overall length (front weight to link end): 3500mm
Overall width (outer wheel tread):  1550mm
Height to R.O.P.S (top): 2000mm
Height to canopy (top): 1900mm
Height to steering wheel: 1800mm
Ground clearance 340mm
Tractor weight with ballast: 1690kg
Tractor weight with loader: 2200kg
Minimum turning radius 3±0.2m
Speed forward: 2.1-31.97
Speed reverse: 2.76-12.76
2.1-31.97, Shuttle shift
Suspension Seat: YES
Hydraulic Remotes: YES
Step Through Deck: YES
Bonnet Engine Access: YES
PTO Clutch: YES
Air Conditioning: NO

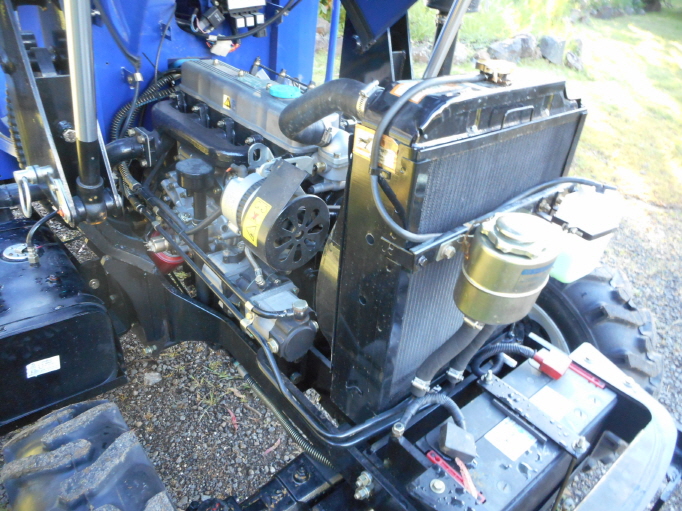

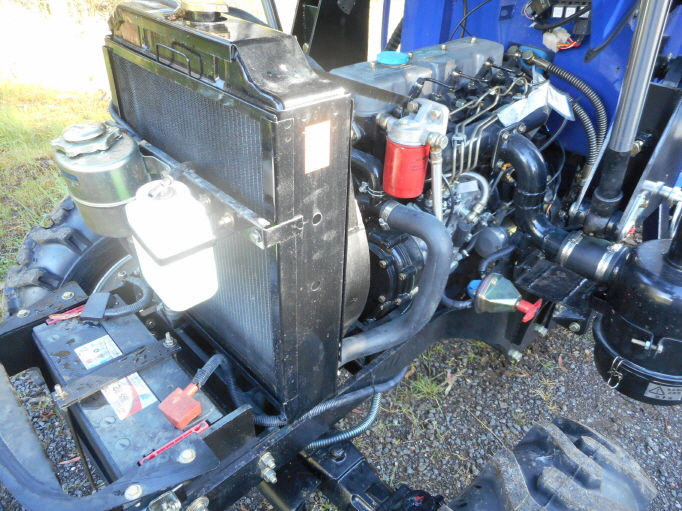

  Engine Details

Engine manufacturer: Hua Yuan Lai Dong Engine [ LD]
Which other main china brands use this engine : Foton, Lovol, Dongfeng ,SH
Model: Lai Dong 4100
Type: Water cooled, vertical
Gross power(12hr rated power kW/hp): 40.45 KW/55HP
Cylinders: 4
Bore and stroke:
Displacement:
Speed rated at:  2400r/min



  Transmission / differential details

Transmission brand:  Baili [TED]
Transmission type: Central Gear Transmission [Foton style]
Which other tractor brands use this type of Transmission:  Futon, Lovol, Dongfeng’s
Transmission Type: Central Gear Transmission
Gearbox: (4+1)*2 gear shifts

8 forward/ 8 reverse, Shuttle shift
Gears: Spiral Bevel Gear
Brake type: Effective wet drum system
Clutch type:  Double Clutch
Rear differential lock: yes
PTO type: Double Speed
PTO rotating speed:  540/720rpm
PTO kW/HP:              Estimated at 85 - 90% of engine HP
3PL capacity at Ball End: 5.29KN

  Tyres

Front tyre size - Agricultural: 7.5-16
Rear tyre size - Agricultural: 13.6-24
Front tyre size - Turf: NO
Rear tyre size - Turf: NO
Front tyre size - Industrial: N/A
Rear tyre size - Industrial: N/A

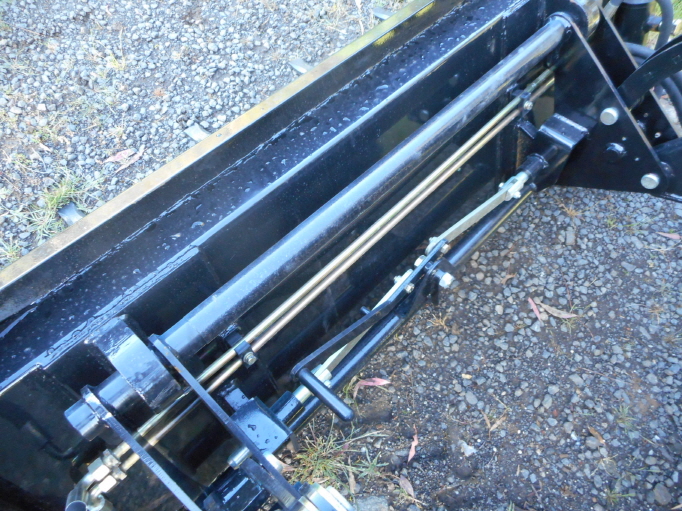

Front end loader

Hydraulic pumps Brand: Weifang Xi Xiang or Similar brand
Pump model: HLCB-D06/06

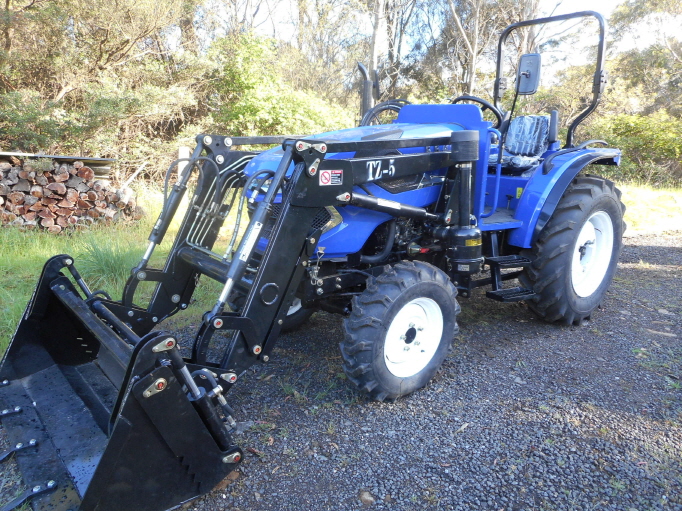

Model No: TZ-5
Supply: Factory in China
Loader Control: Hydraulic system
Bucket width:  1520 mm
Quick Release from Tractor: YES
Quick Release Bucket: YES
(A) Lift height at Pivot Point: 2000mm
(B) Dump clearance: 900mm
(D) Crowd angle:  42°
(E) Dump angle:  47°
Lifting capacity: 0.25m³
Lifting Weight: 500 kg

* Specifications can change at any time, without notice, so please check with our staff to be sure
